Force USA

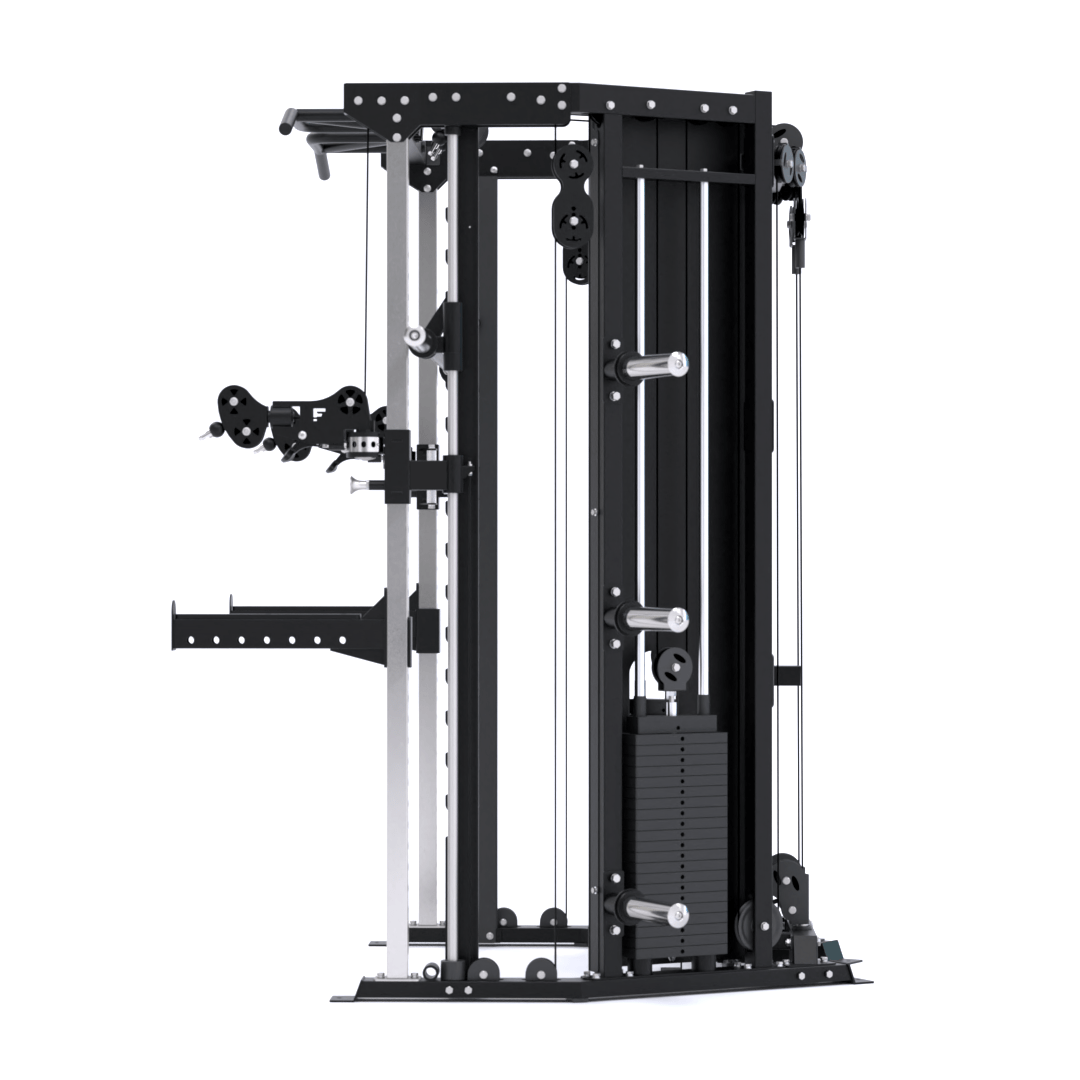

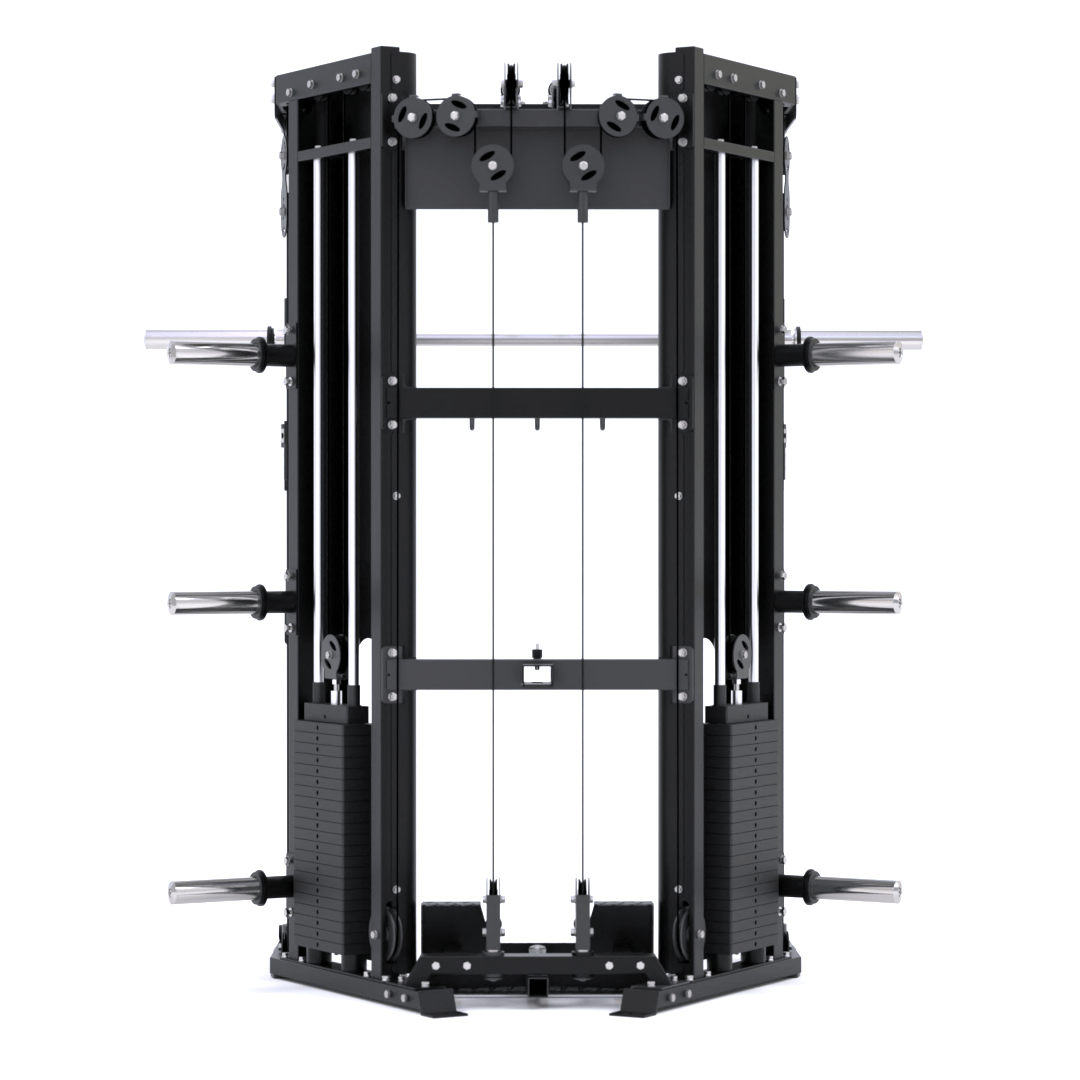

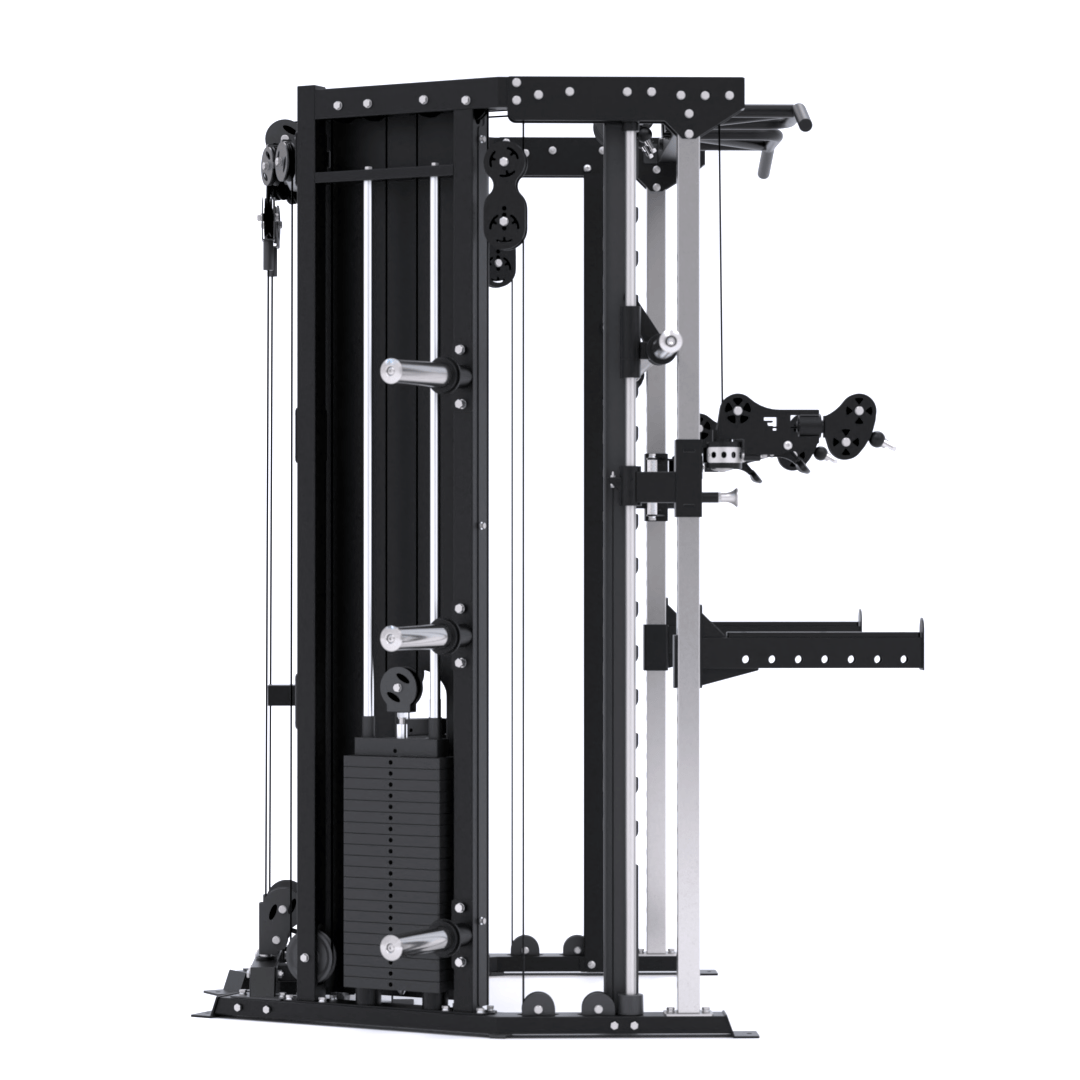

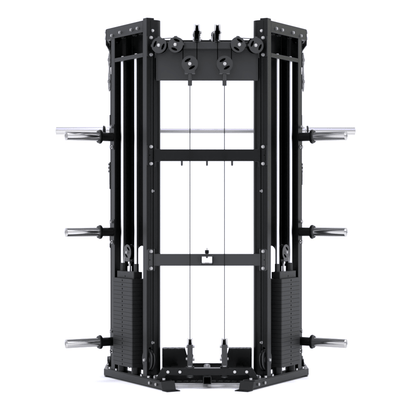

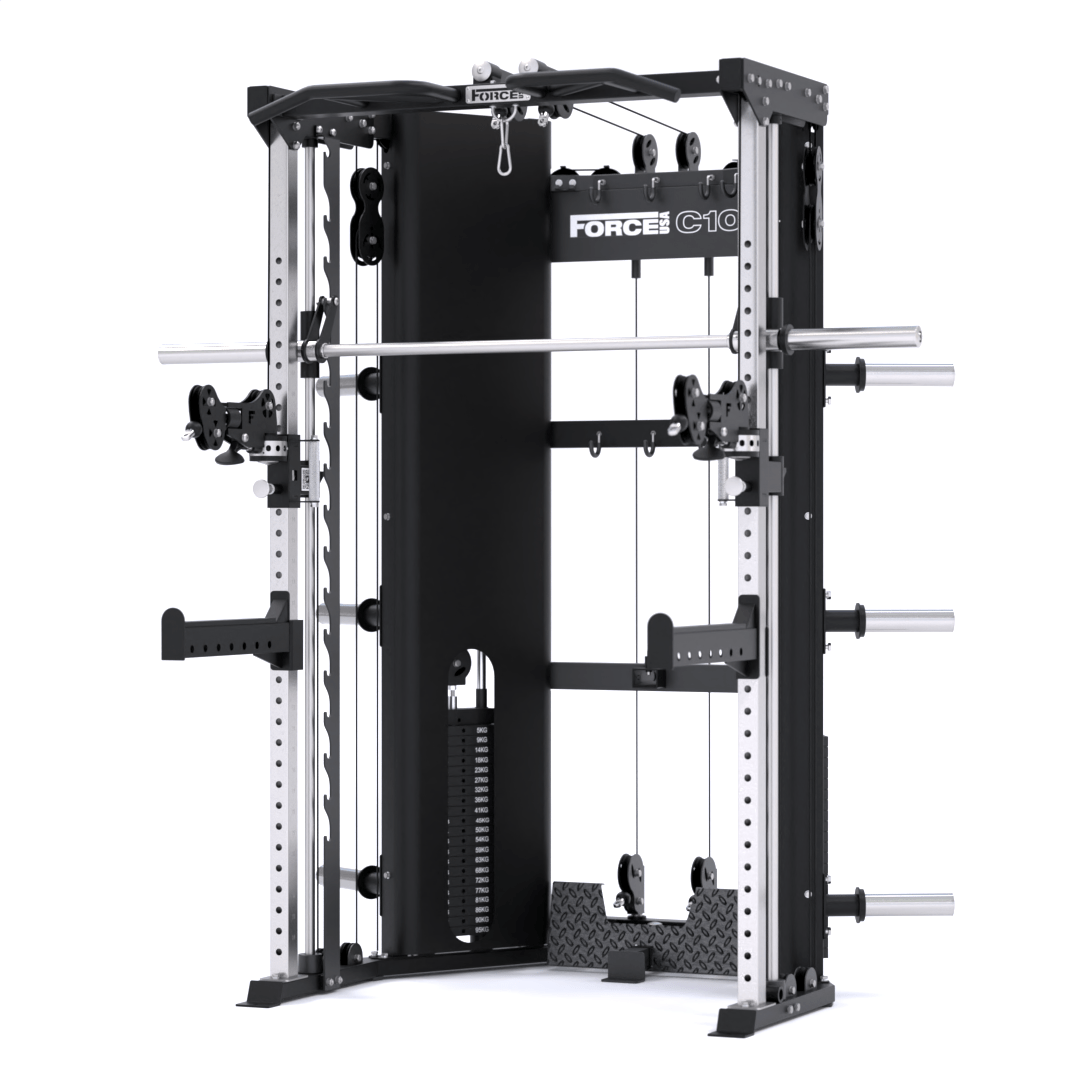

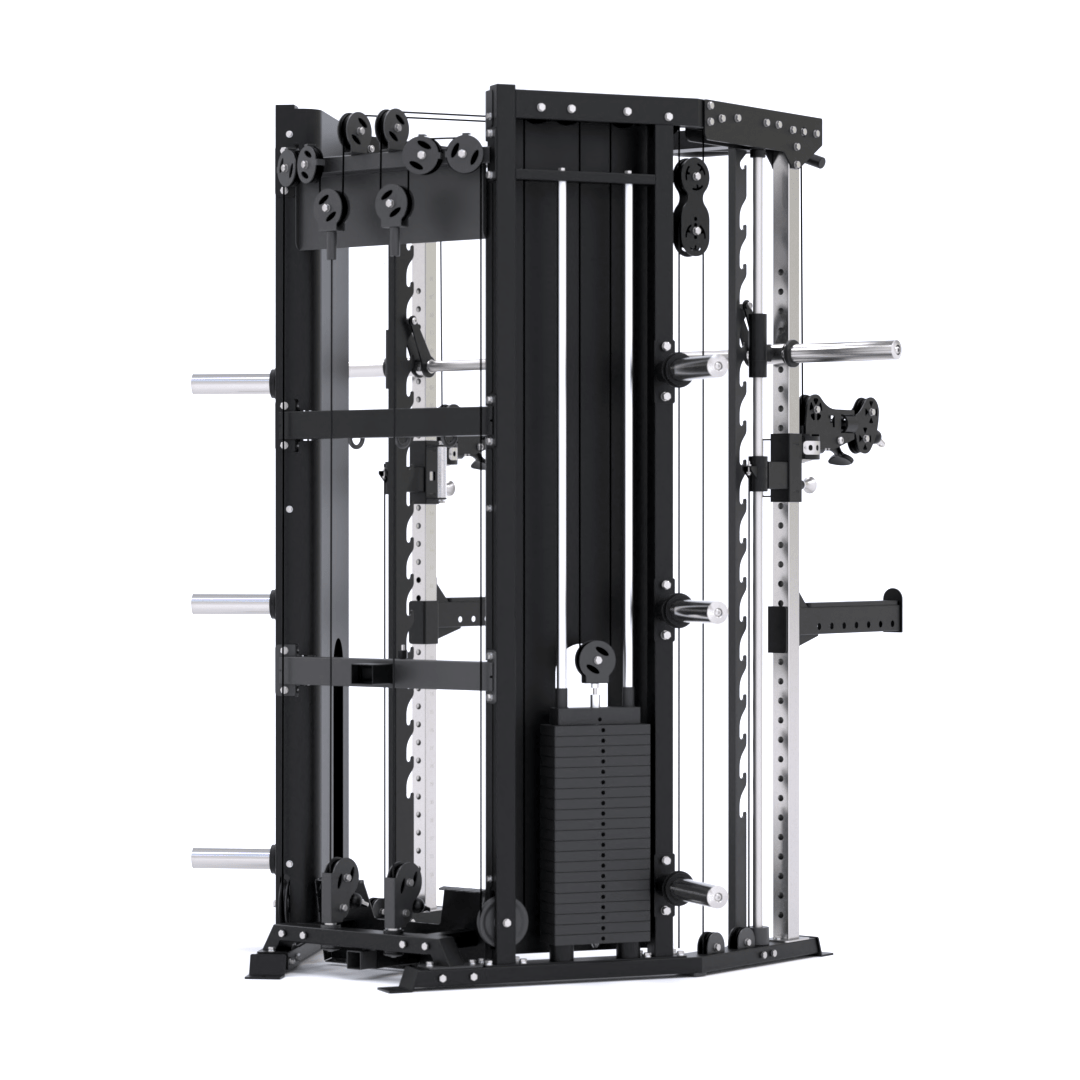

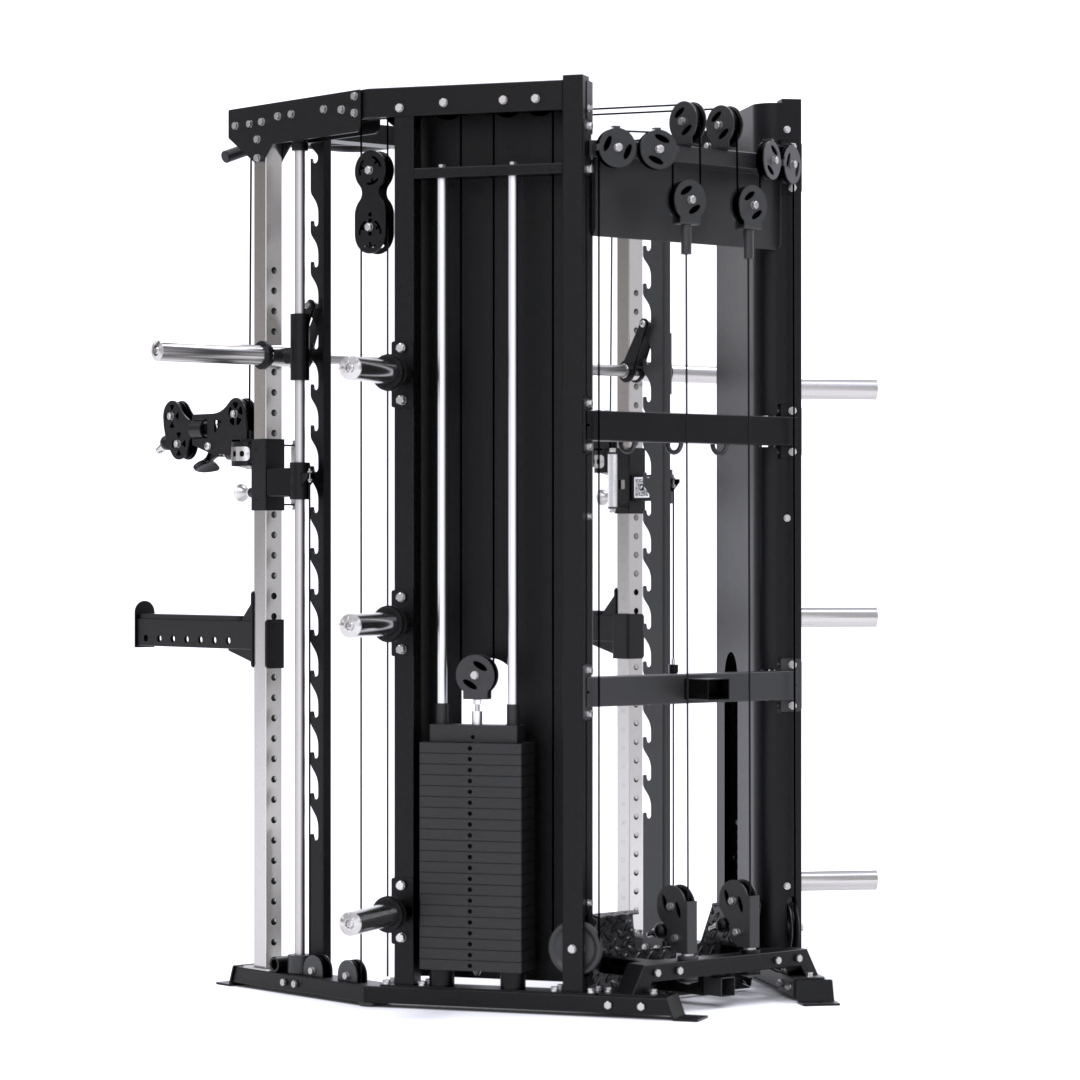

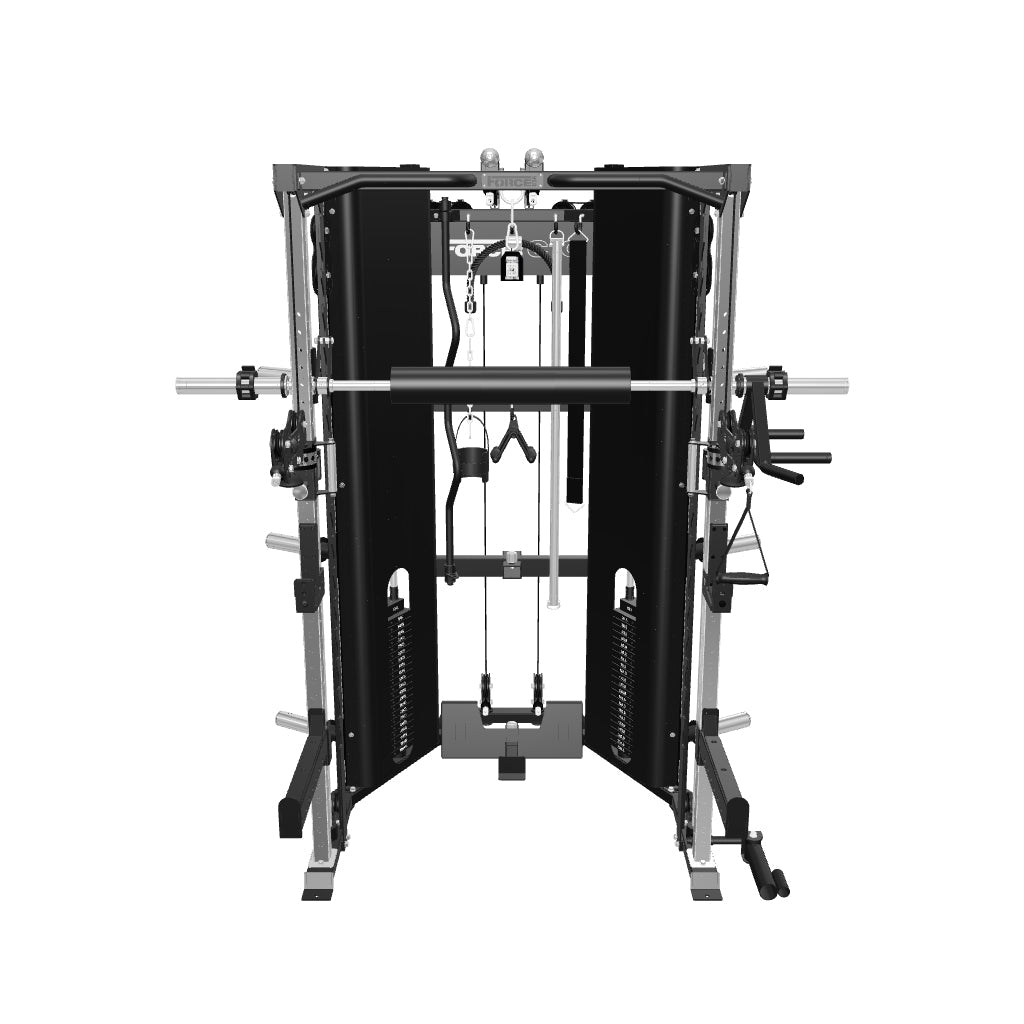

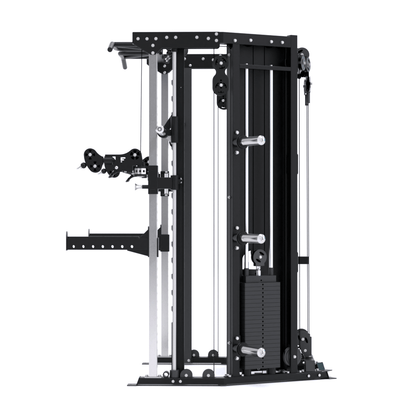

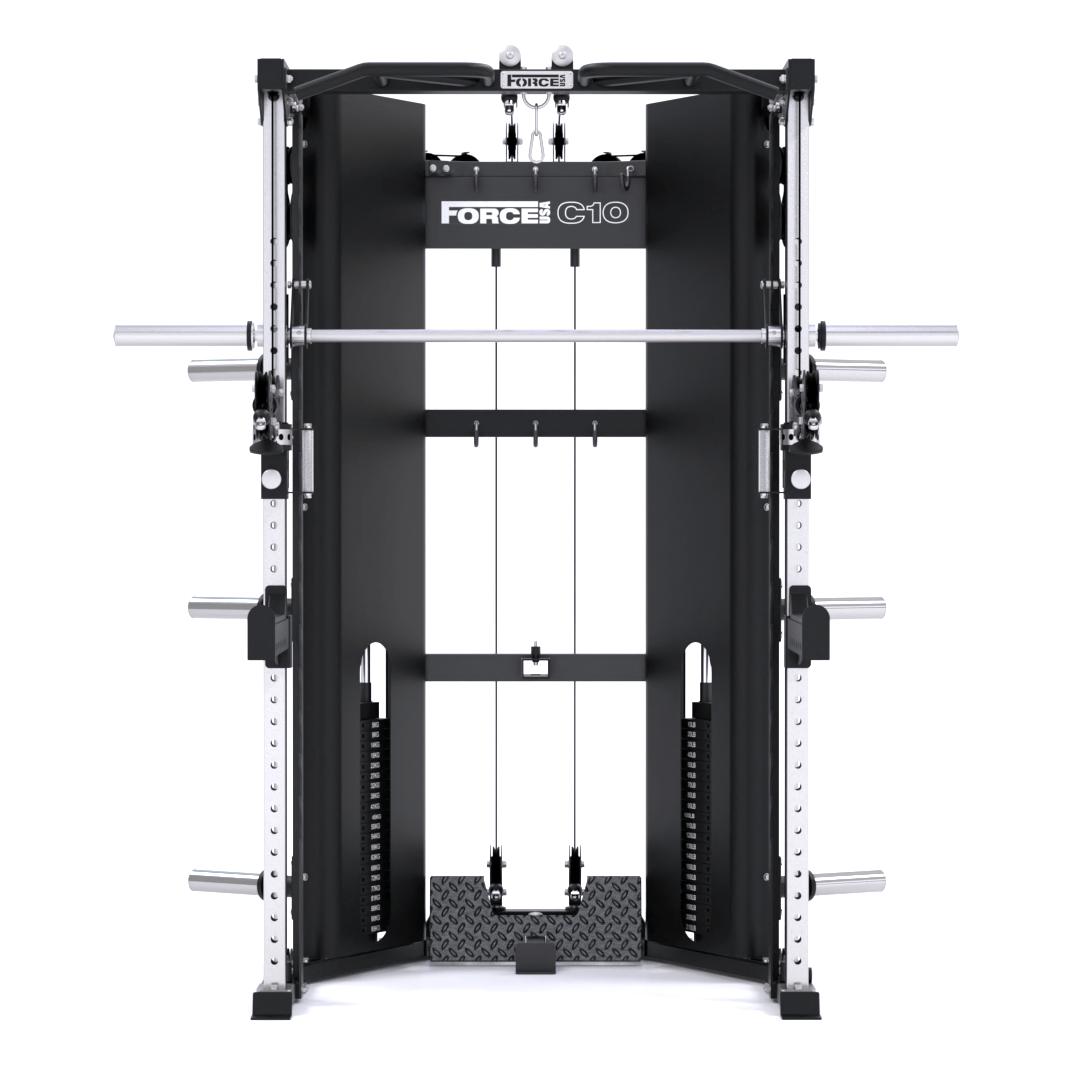

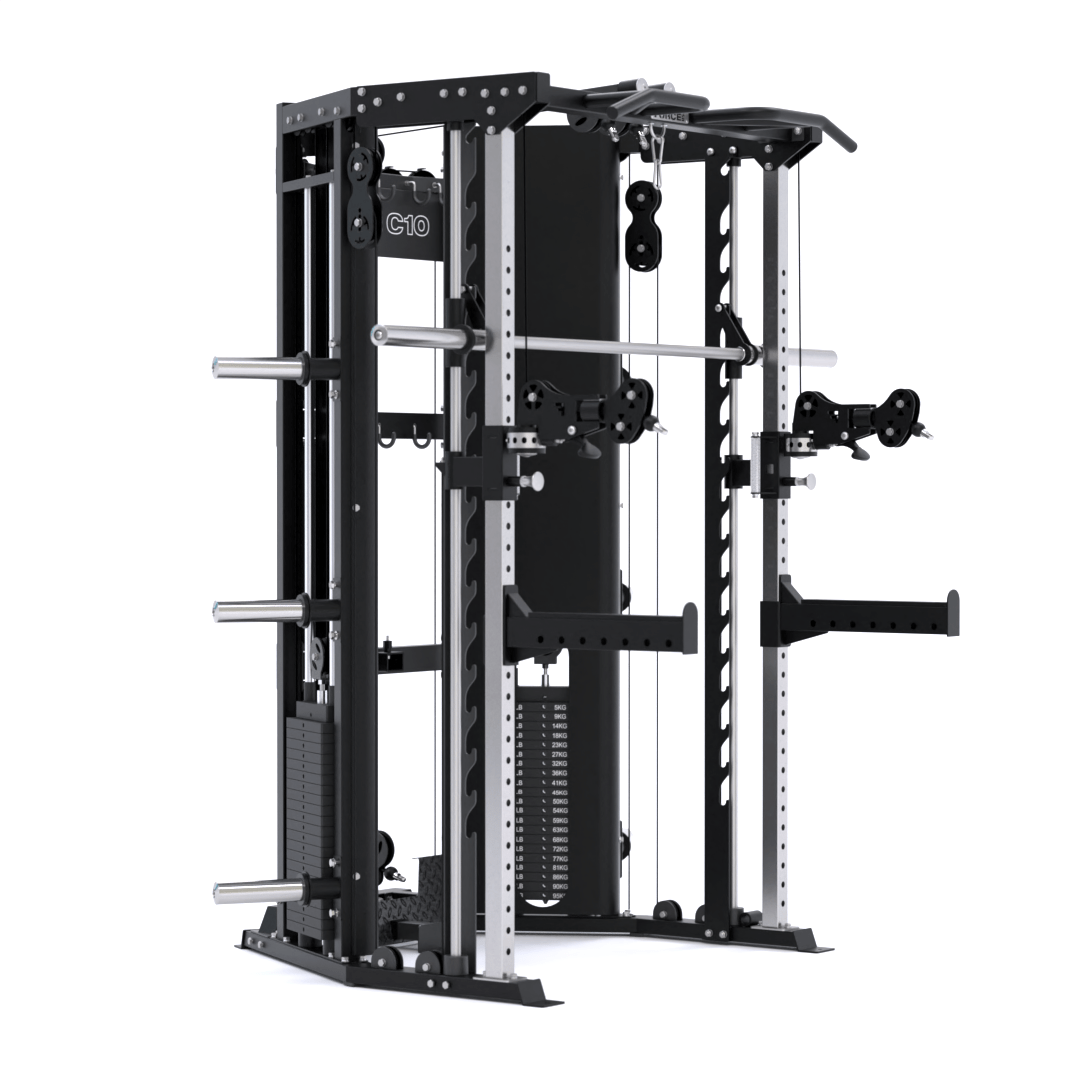

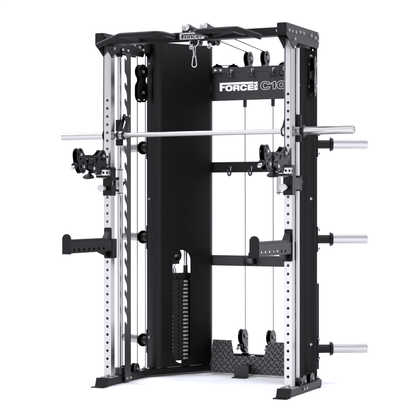

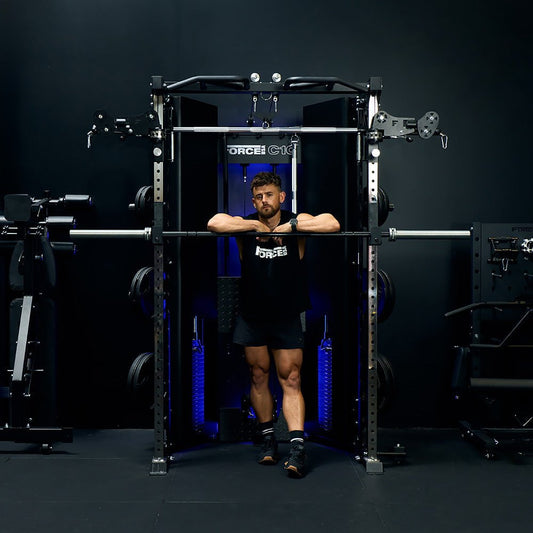

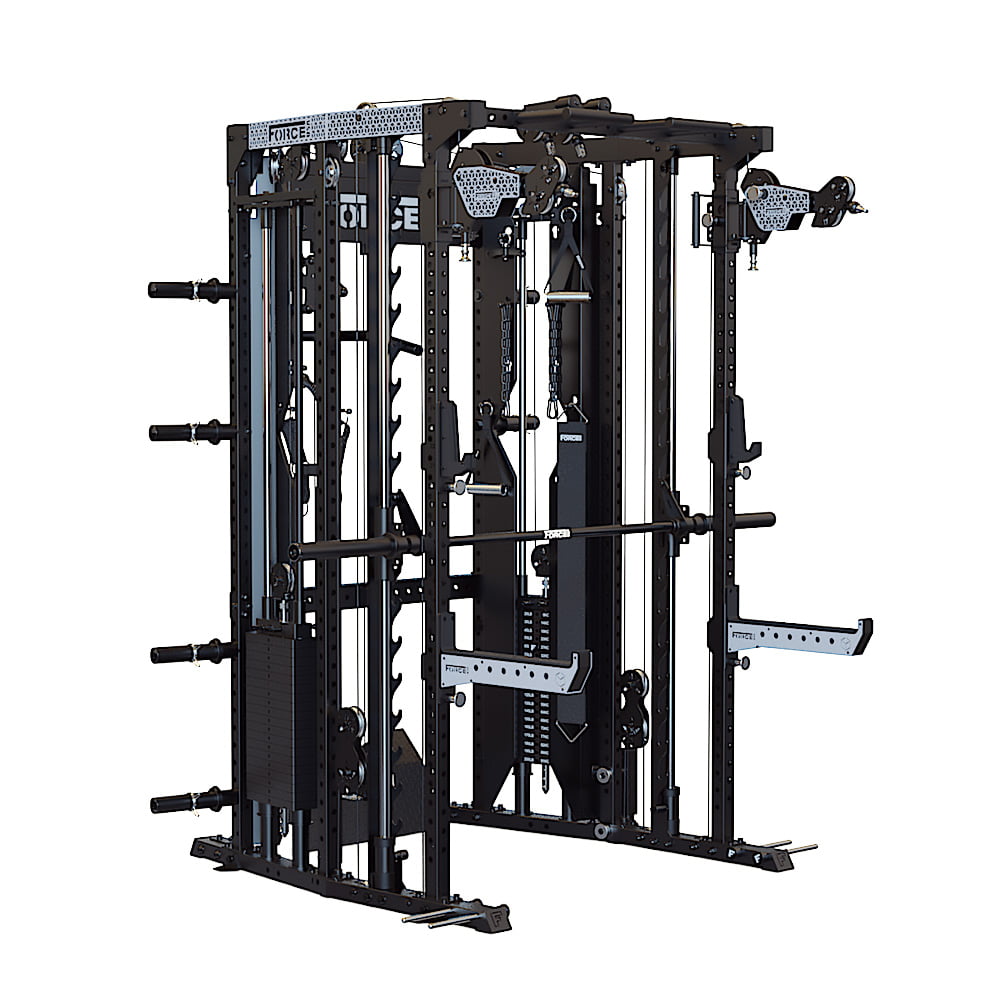

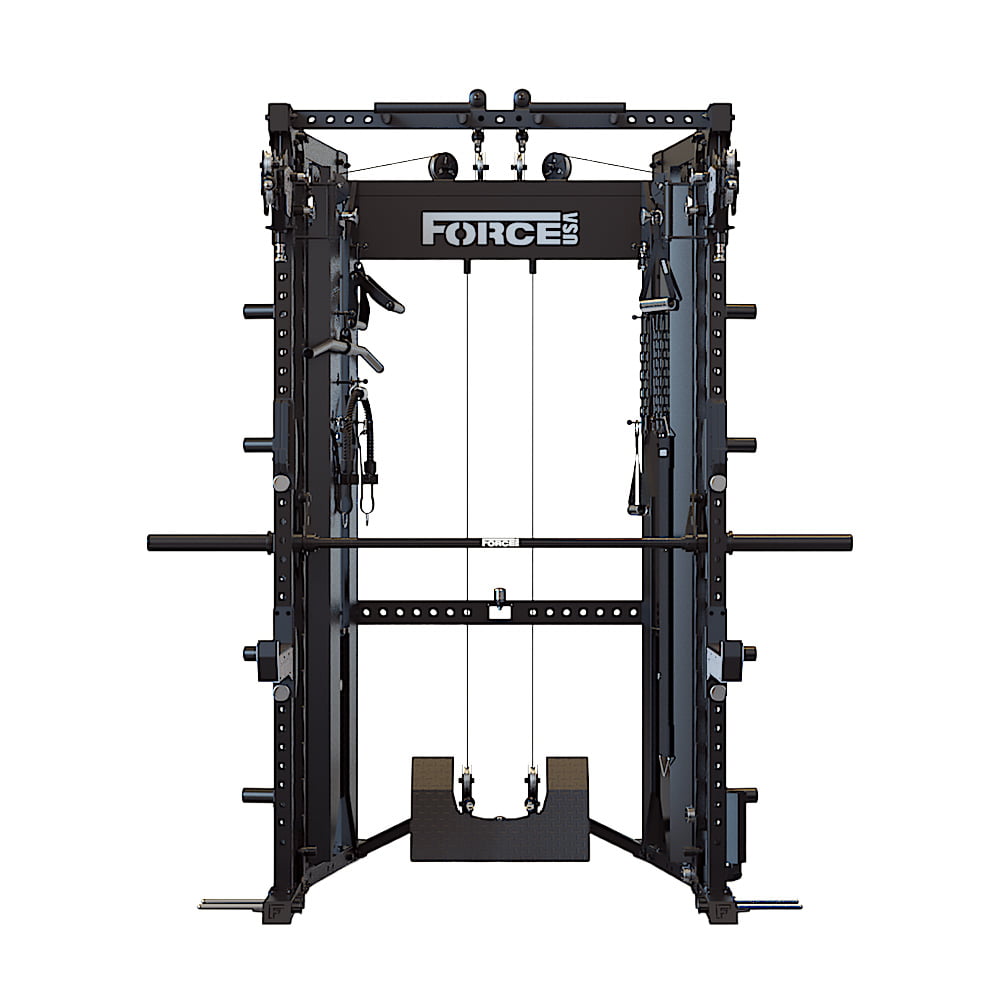

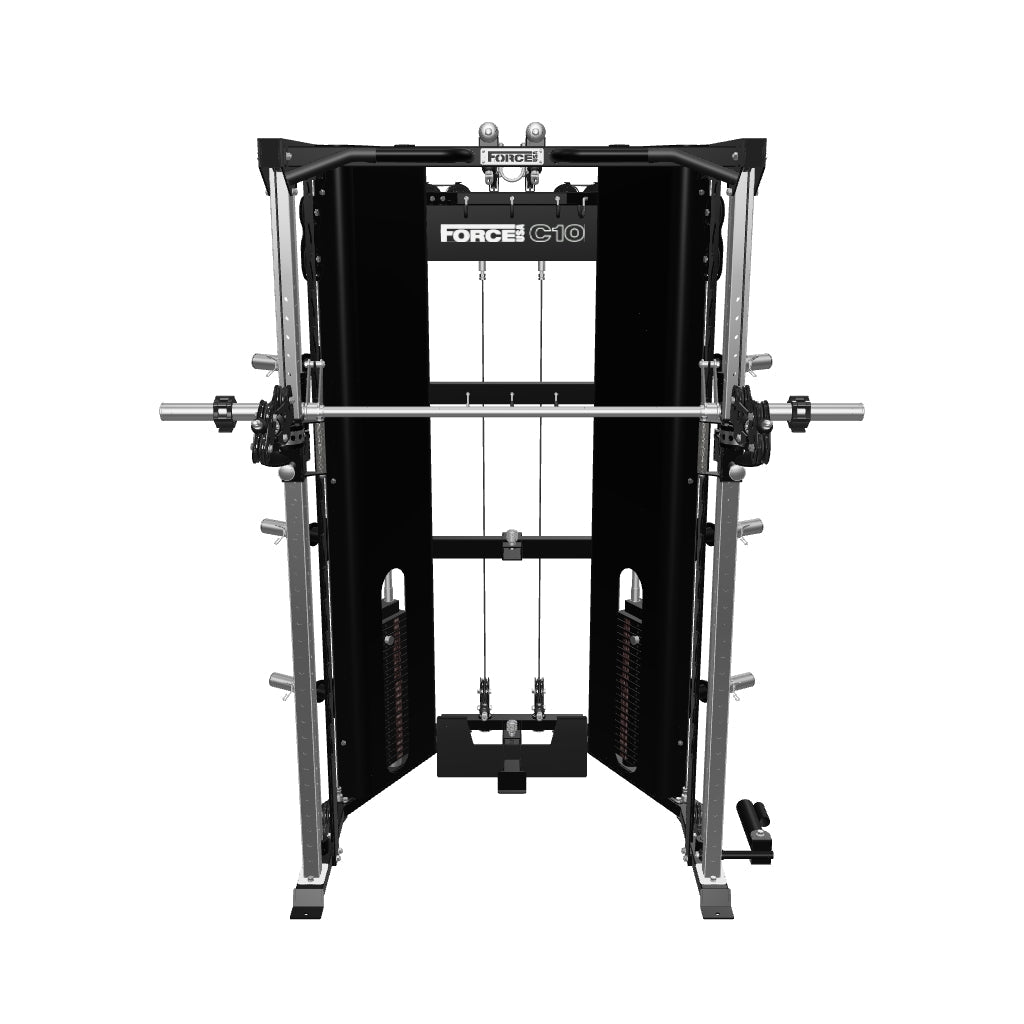

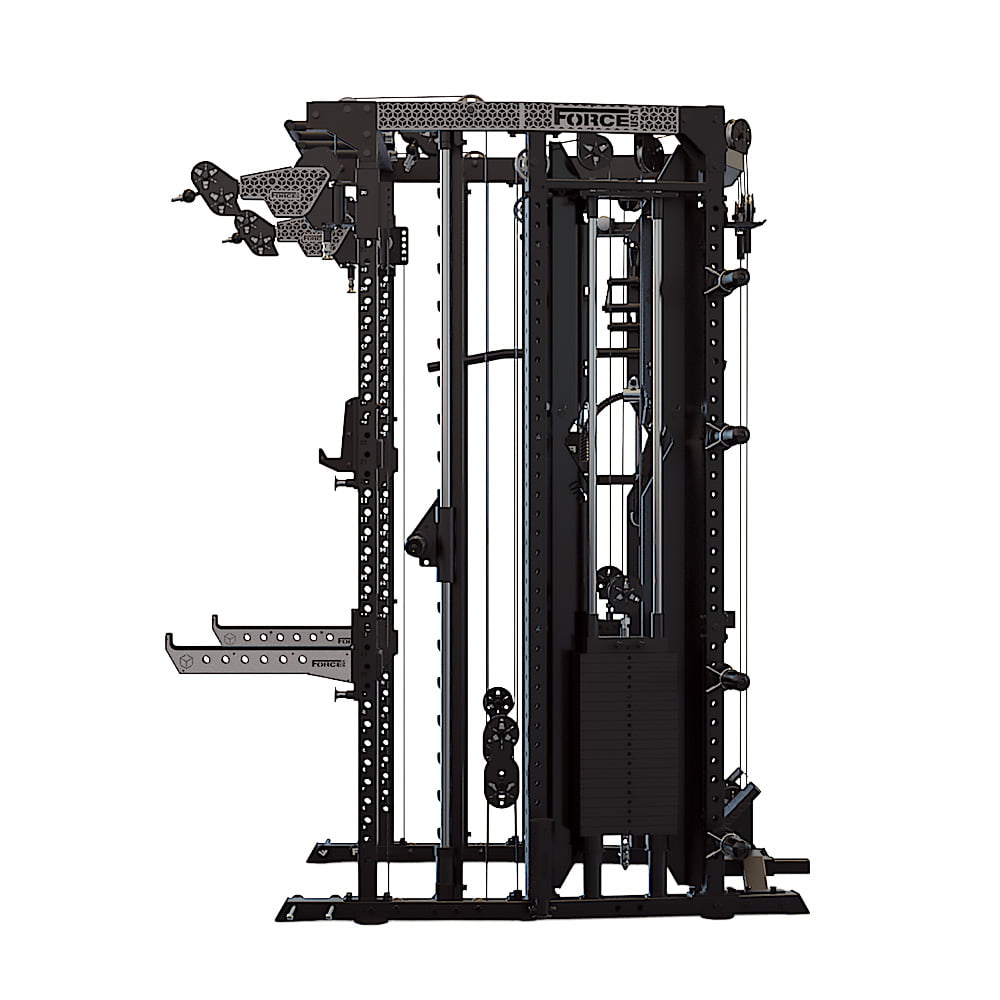

C10 All-In-One Trainer V2

C10 All-In-One Trainer V2

Regular price $6,999.00
Regular price Sale price $6,999.00
Sale Sold out

The next evolution in comprehensive strength training, the Force USA C10 All-In-One Trainer is an absolute game-changer for your fitness space. Rebuilt inside and out, this beast features a revolutionary Cornerstone station packed with six pulley connections and dual Freestyle Pulley Arms to hit every single movement angle without frustrating machine reconfigurations. Engineered with commercial-grade 11-gauge steel, it offers heavy-duty durability while maintaining a smart, compact footprint. This incredible functional trainer is available through Gym and Fitness to take your strength progression to an elite level.

In Stock

Speak to a sales rep
View full details

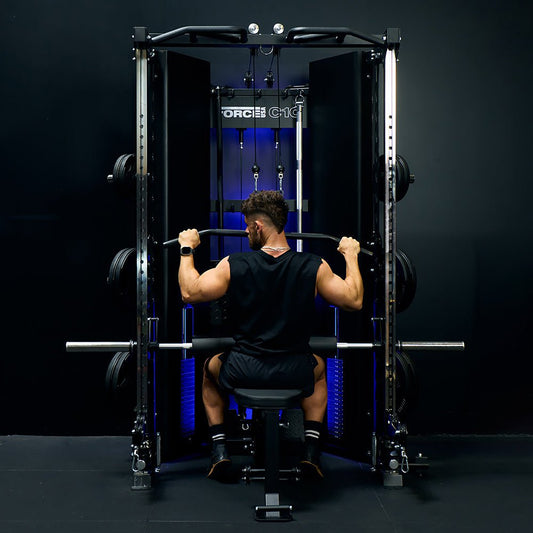

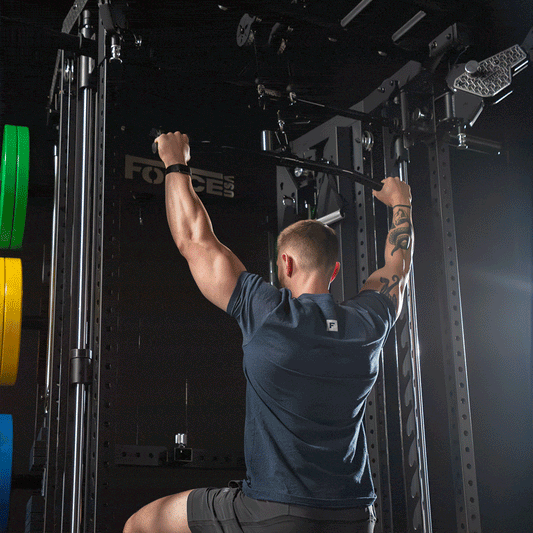

  • UNMATCHED VERSATILITY WITH THE CORNESTONE SIX PULLEY SYSTEM

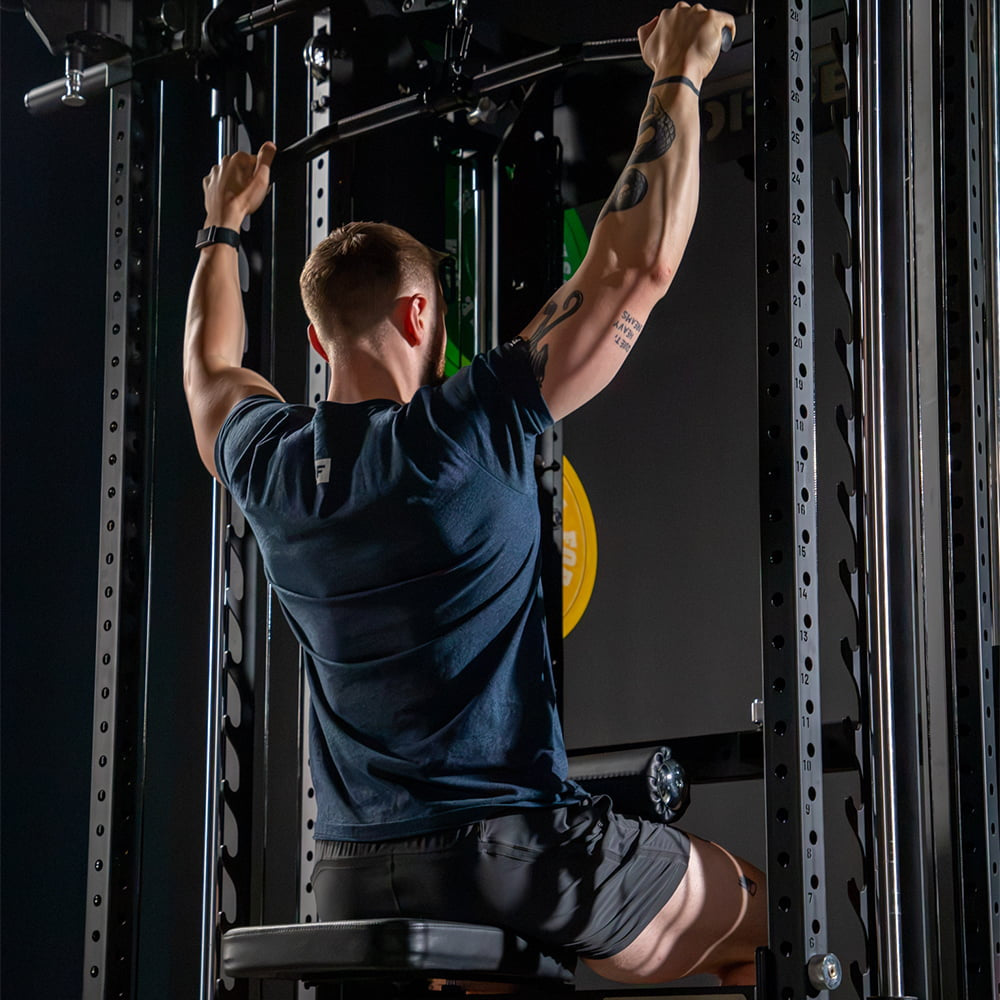

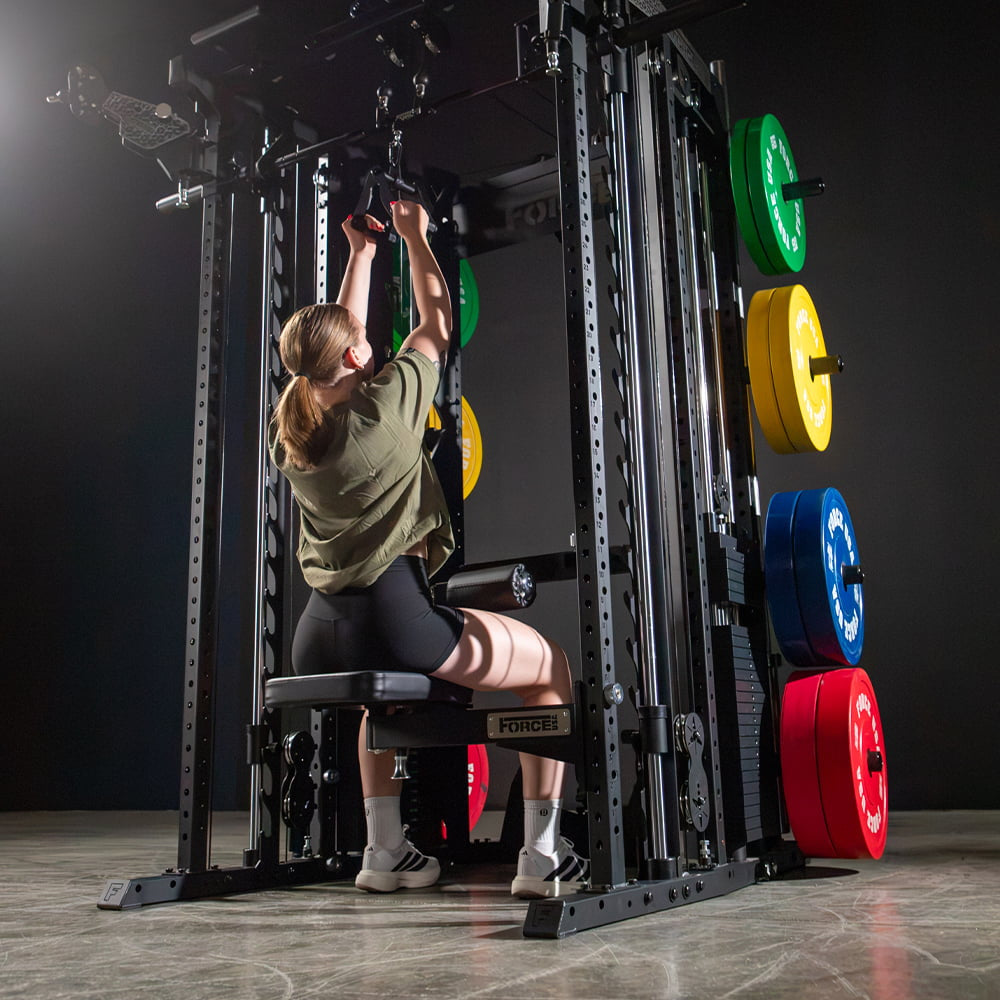

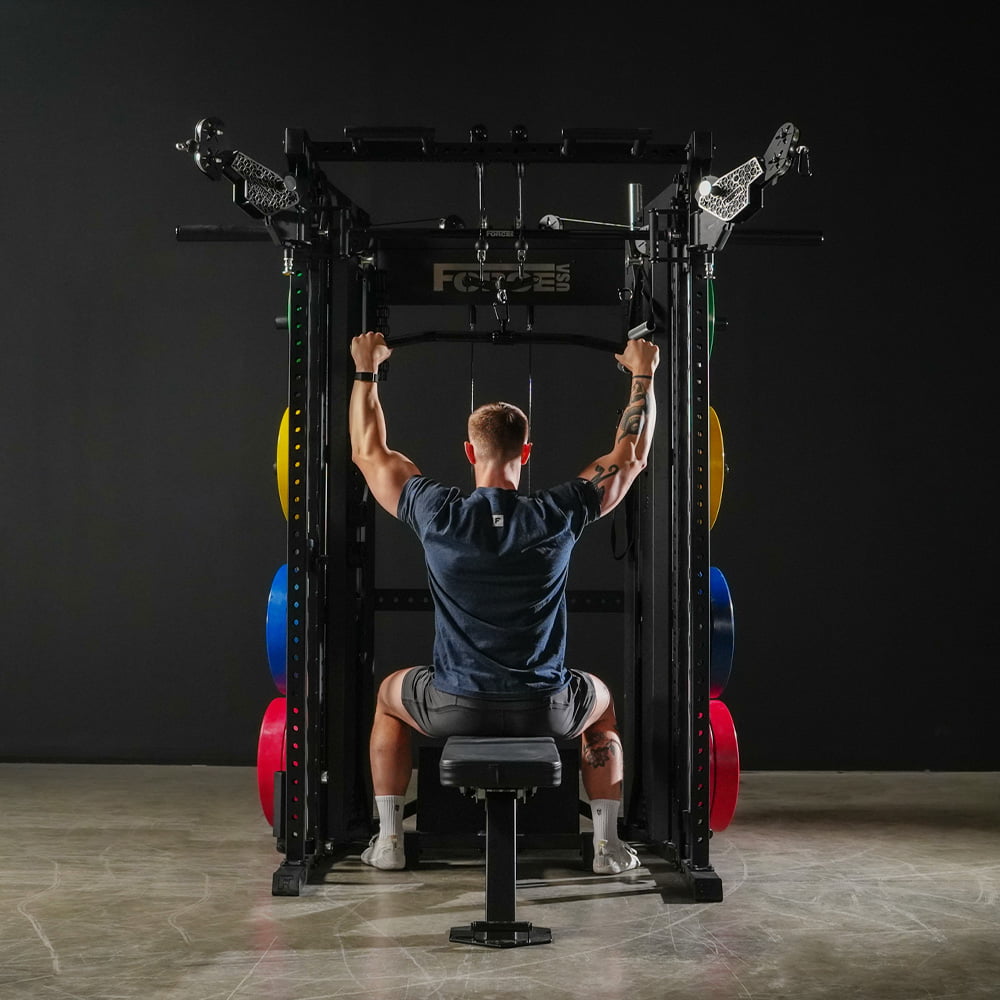

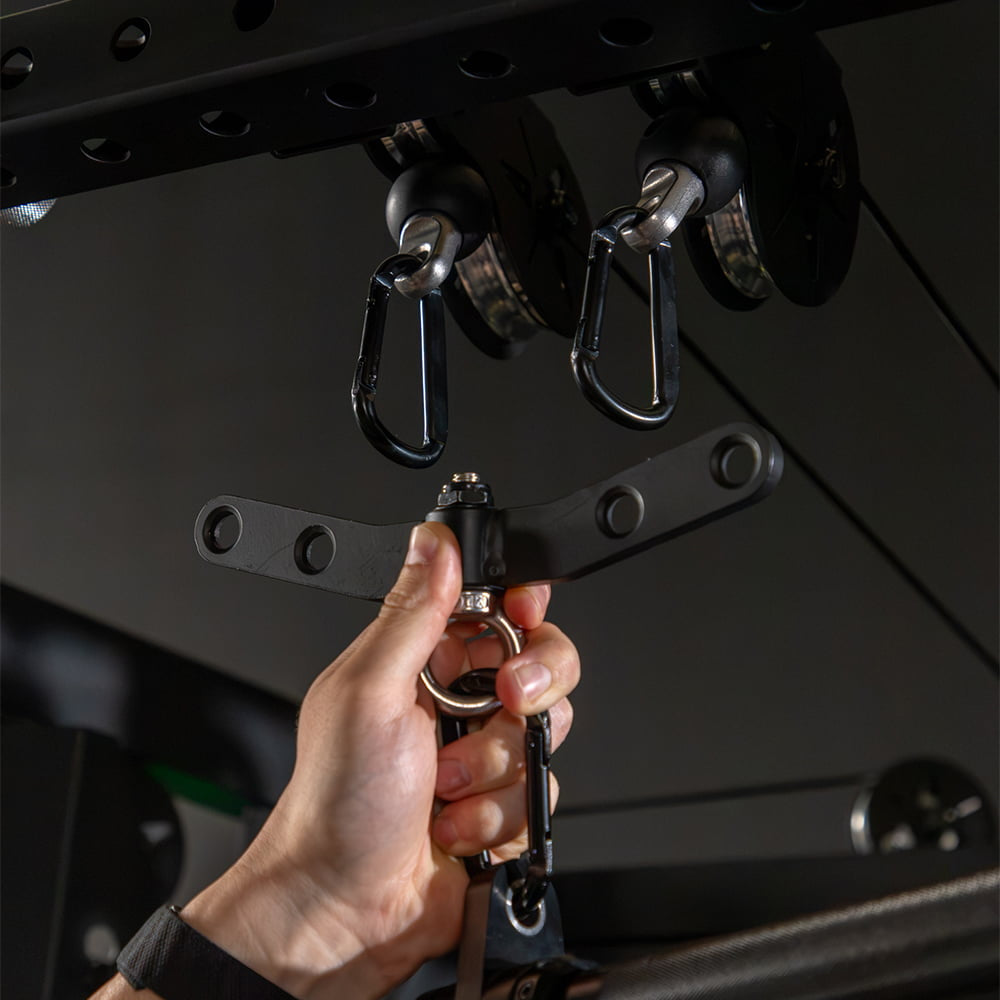

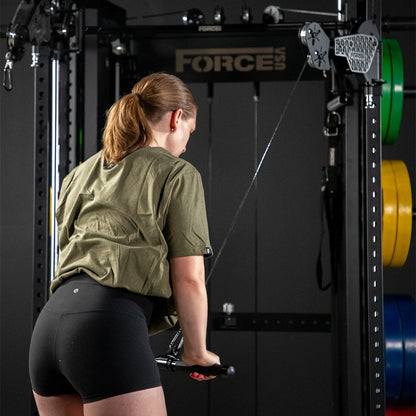

    The core innovation of this machine revolves around the Cornerstone station, delivering six independent pulley connections packed into a single, sleek footprint. This setup integrates high and low center cable stations alongside dual Freestyle Pulley Arms, giving you three distinct cable ratios without ever having to reroute a single cable. The bottom center cables operate at a true 1:1 ratio or can be dual-connected to double your weight resistance while the top center and Freestyle Pulley Arms deliver a smooth 2:1 ratio. It means you can move seamlessly from heavy lat pulldowns to functional cross-body cable work without breaking your training rhythm.

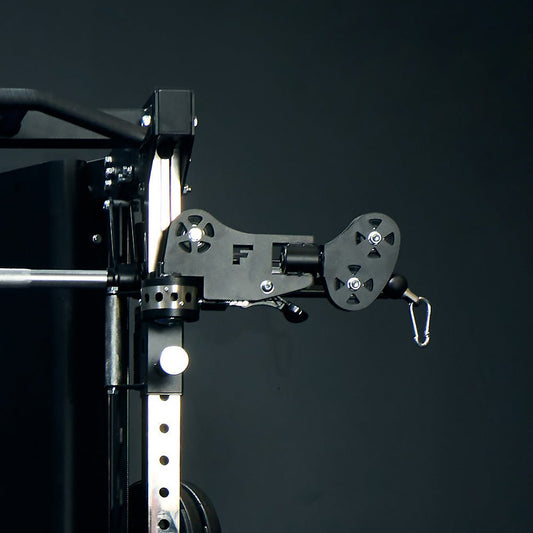

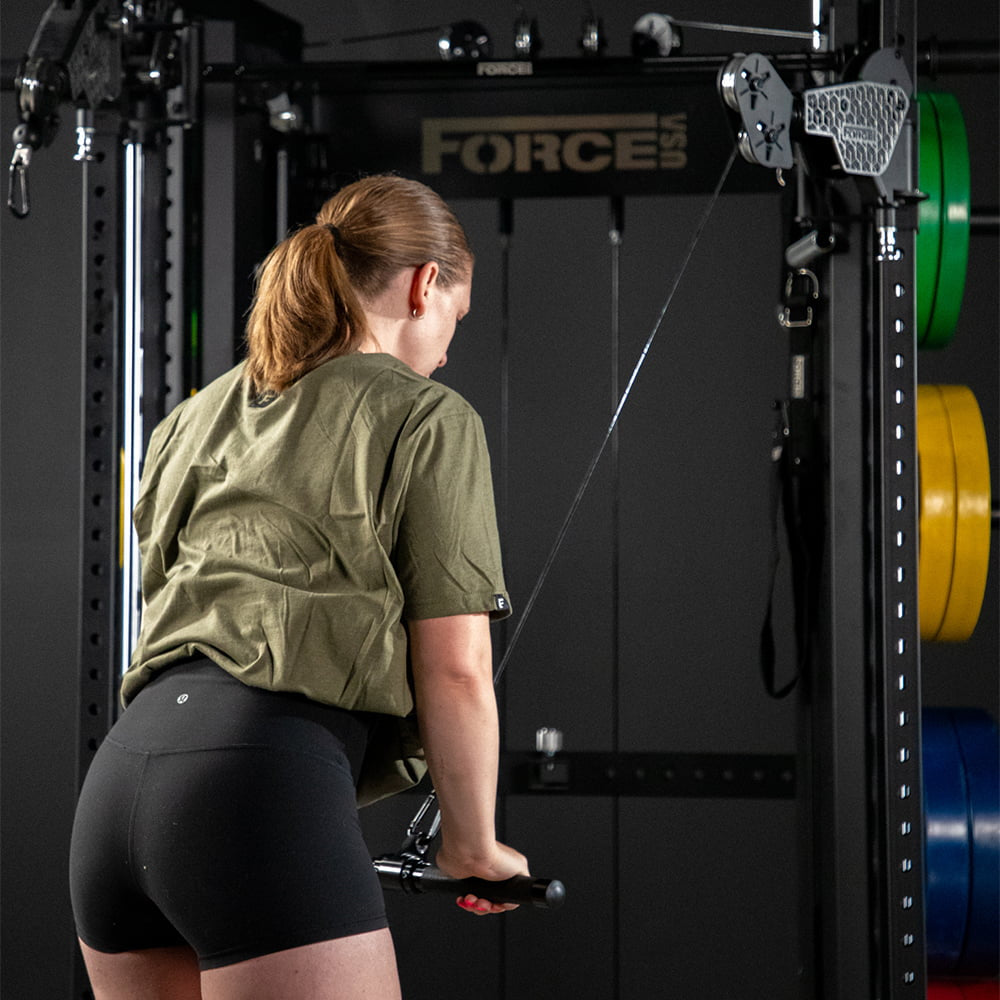

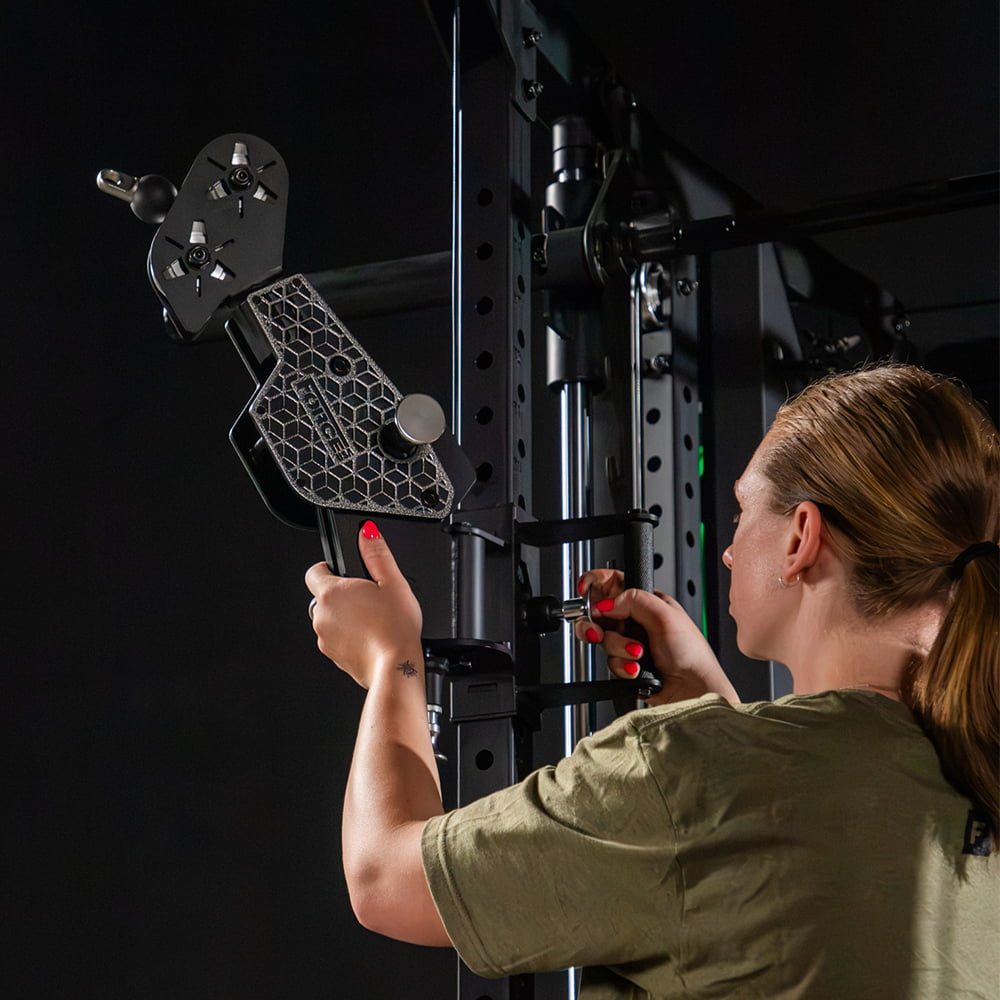

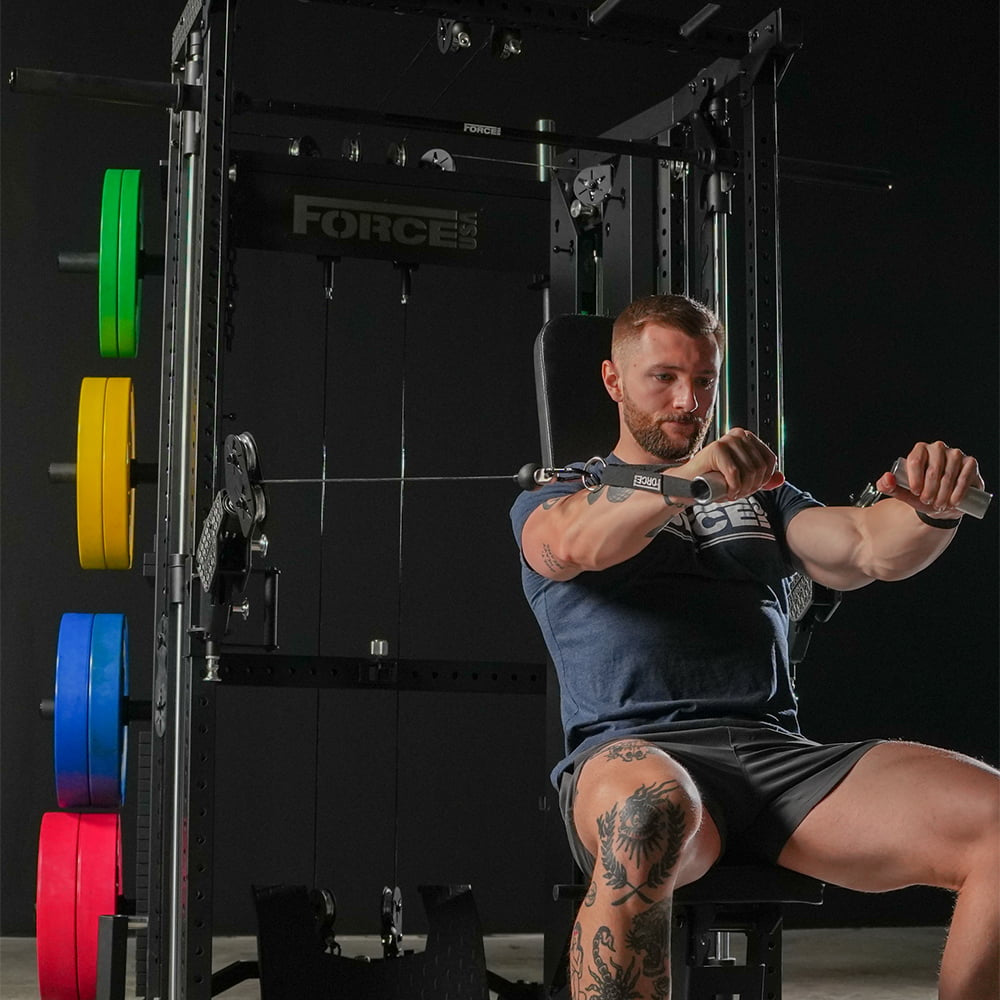

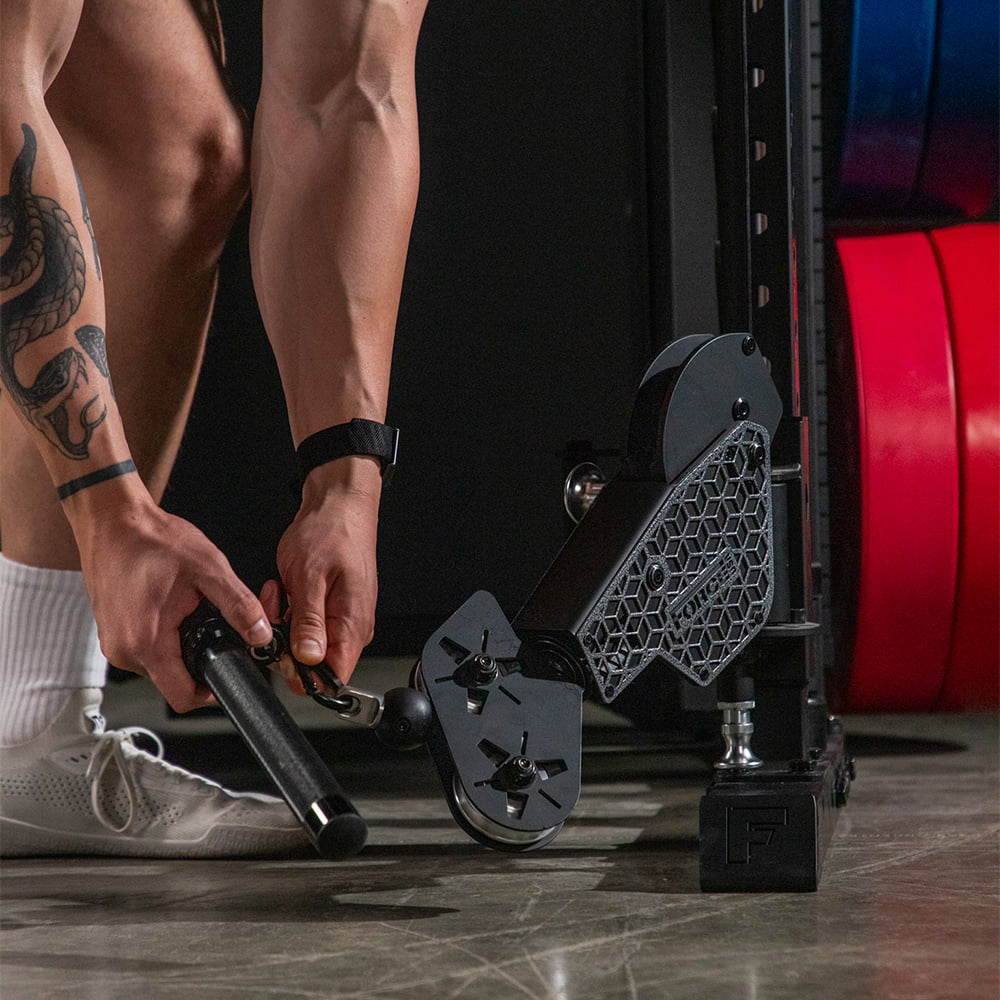

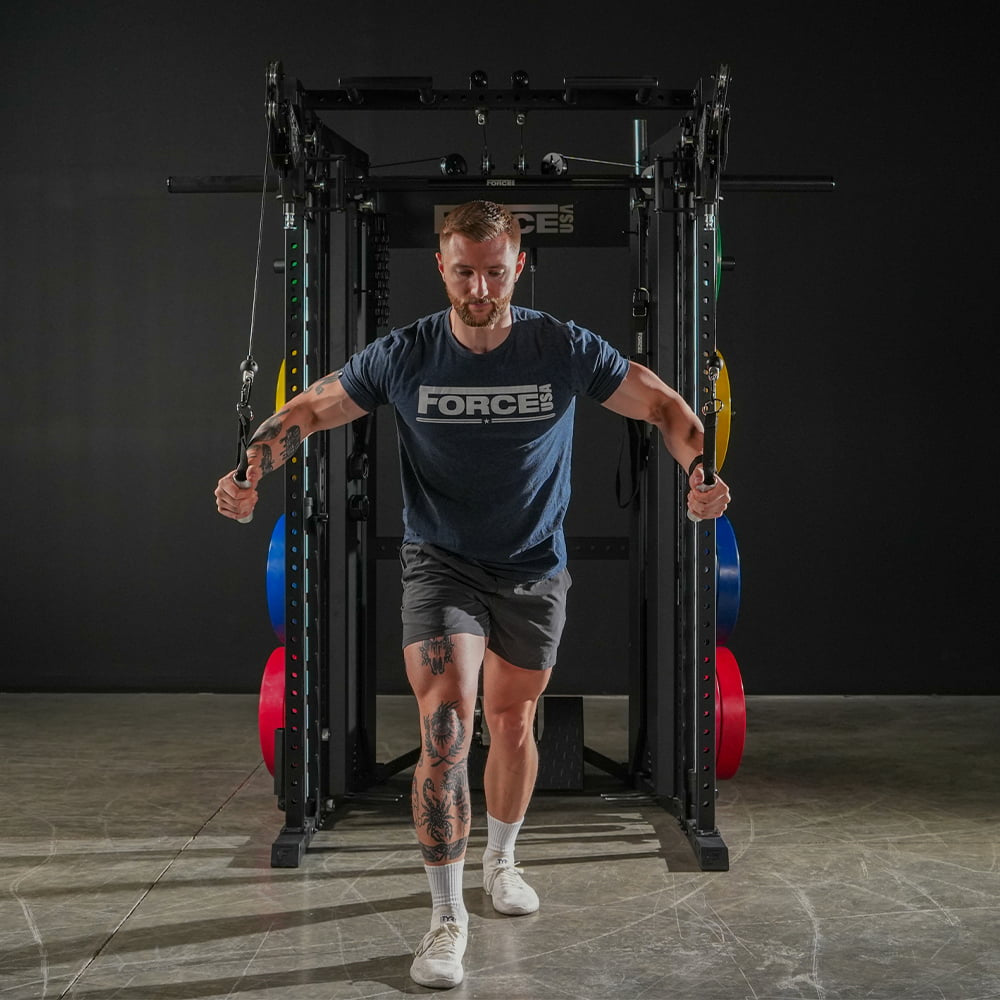

  • EXPLOSIVE FREESTYLE PULLEY ARMS WITH FLOW AND LOCK MODES

    Take complete control over your functional training with the dual Freestyle Pulley Arms that adapt instantly to your training goals. Switch the machine into Lock Mode via a heavy-duty pop-pin to secure the arms into a rigid, zero-drift position for ultra-predictable, heavy strength work. When you are ready for athletic, rotational, or sport-specific movements, engage Flow Mode to release the arms through a full 180 degrees of freedom. This eliminates friction and joint drag entirely, keeping 100% of the resistance locked squarely onto the target muscles throughout the entire range of motion.

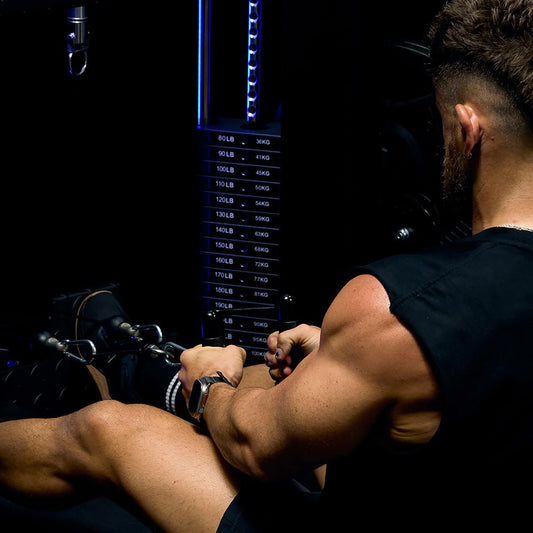

  • MASSIVE UPGRADABLE DUAL WEIGHT STACKS WITH MICRO ADJUSTMENT

    You will never outgrow your cable training with a system designed for massive resistance and precision progression. The trainer comes equipped with dual 91 kg (200 lbs) weight stacks that are fully upgradable to a massive 113 kg (250 lbs) per side. When you connect both stacks through the ultra-smooth 1:1 center cable ratio, you unlock up to 227 kg (500 lbs) of pure, muscle-building cable resistance. To keep your strength journey moving forward without hitting plateaus, it includes a built-in 2.3 kg (5 lbs) micro-adjustment plate, letting you make smaller, incremental progression jumps.

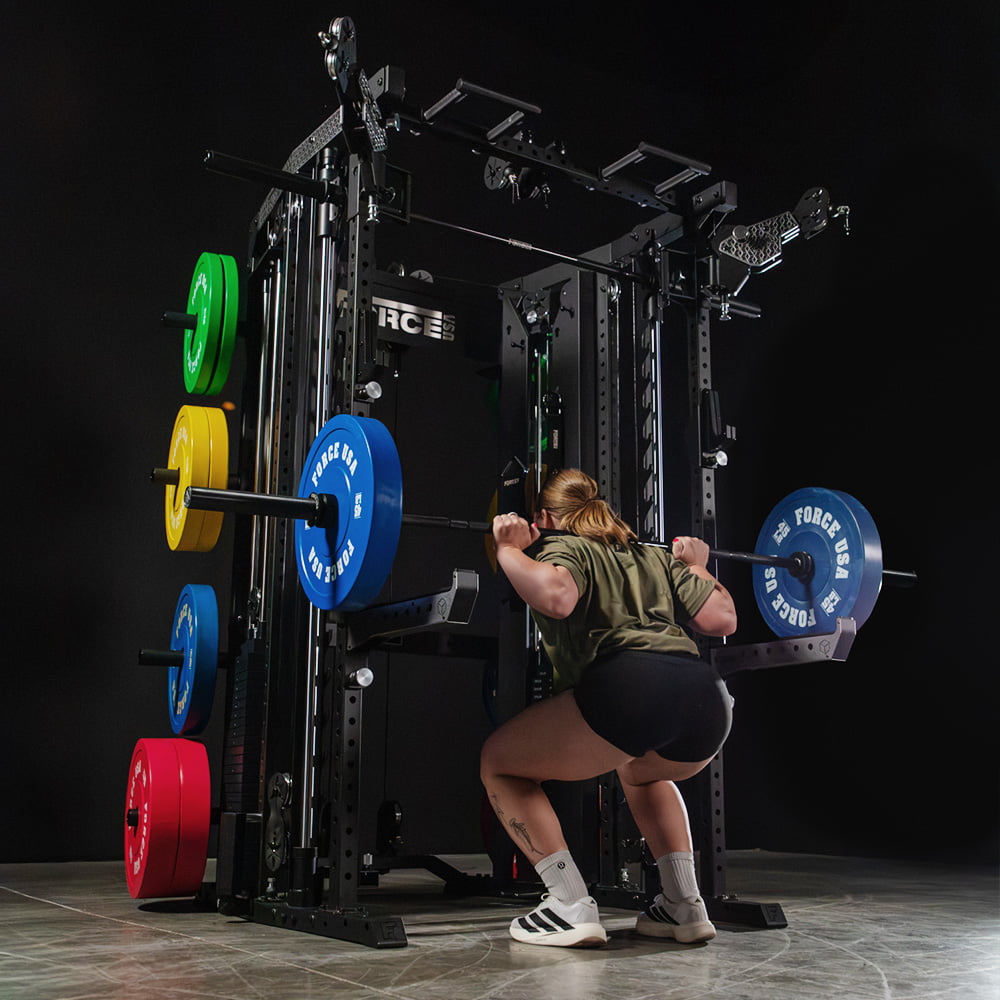

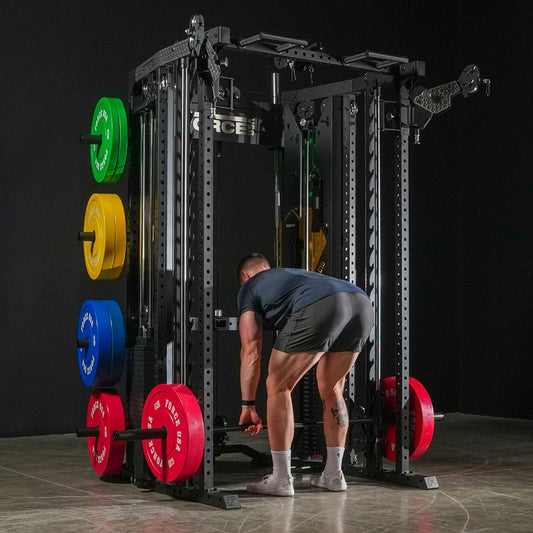

  • HEAVY DUTY SINGLE TRACK SMITH MACHINE FOR COMFORTABLE DEADLIFTS

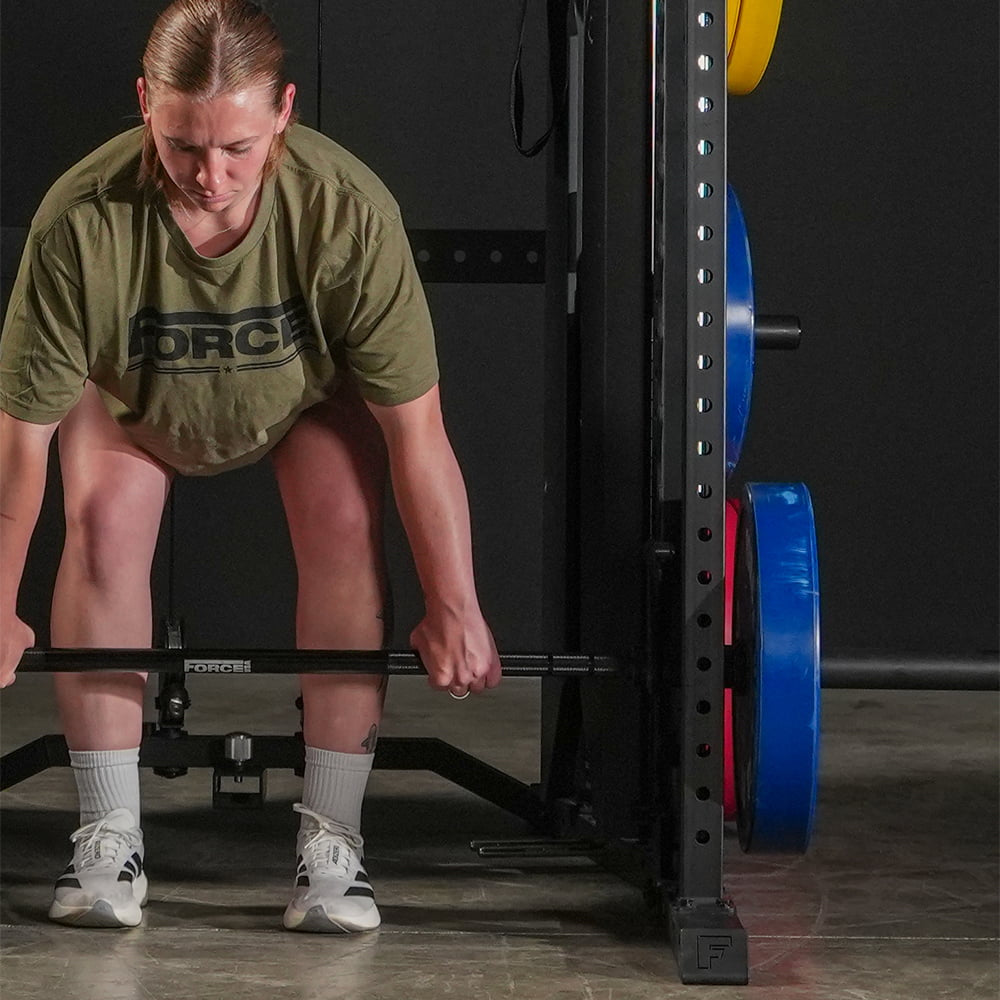

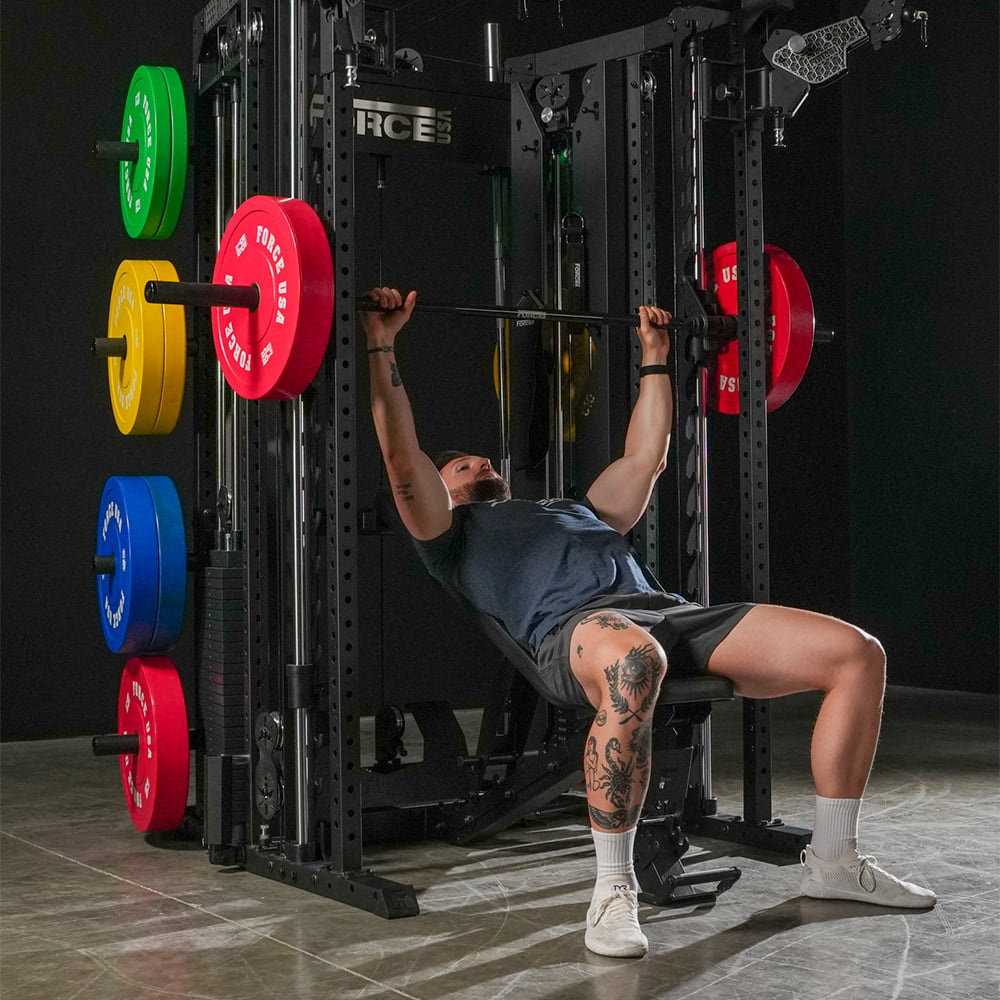

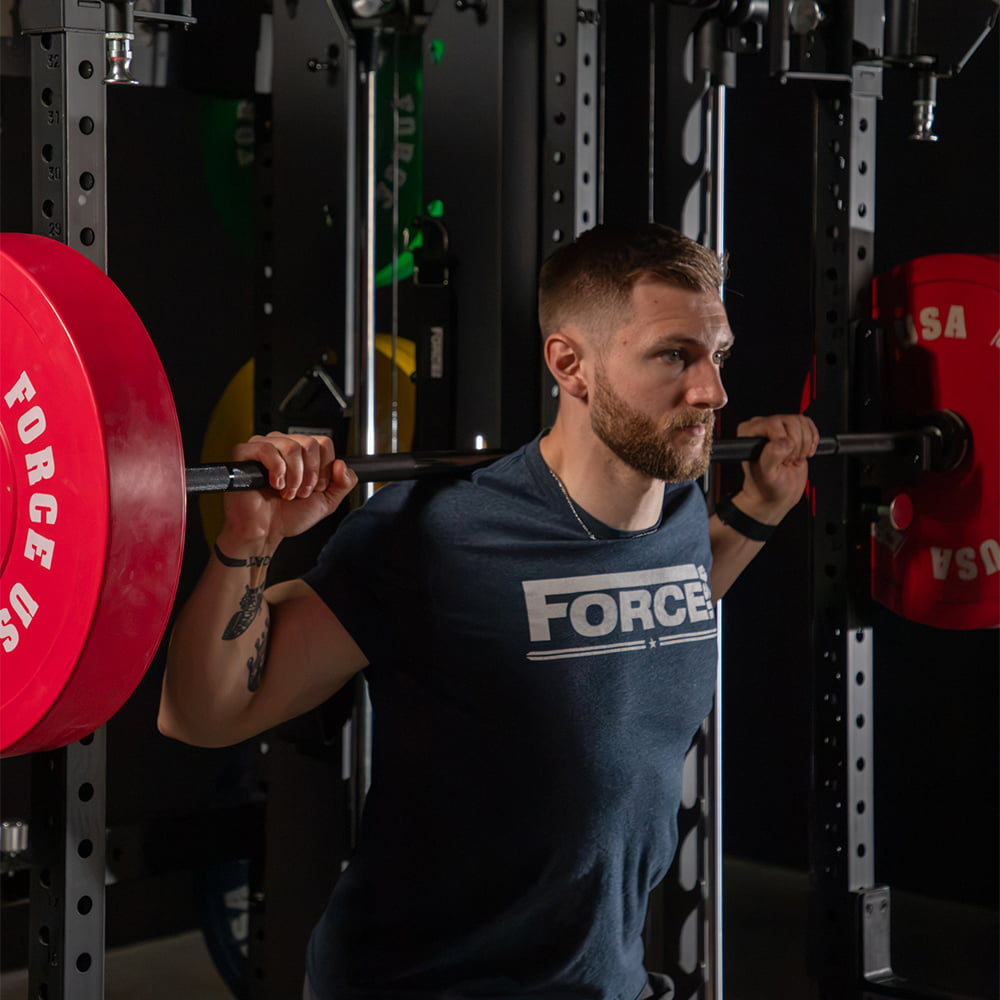

    Experience a completely reimagined, true barbell feel with the Single Track Smith Machine. This innovative architecture wraps its heavy-duty guide rod inside a rigid 5-gauge steel column for rock-solid stability during your heaviest lifts. The integrated 16 kg (35 lbs) bar features professional standard knurling and spinning sleeves to mimic a traditional Olympic barbell perfectly. Best of all, it boasts an industry-leading ultra-low starting position, opening up a full range of motion so you can execute heavy deadlifts, rows, and low-rack pulls safely and smoothly.

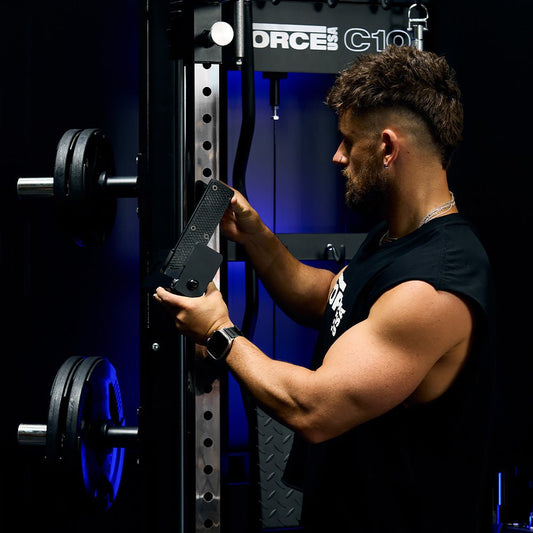

  • ROCK SOLID 11 GAUGE STEEL FRAMING WITH SMART SPACE ADVANTAGE

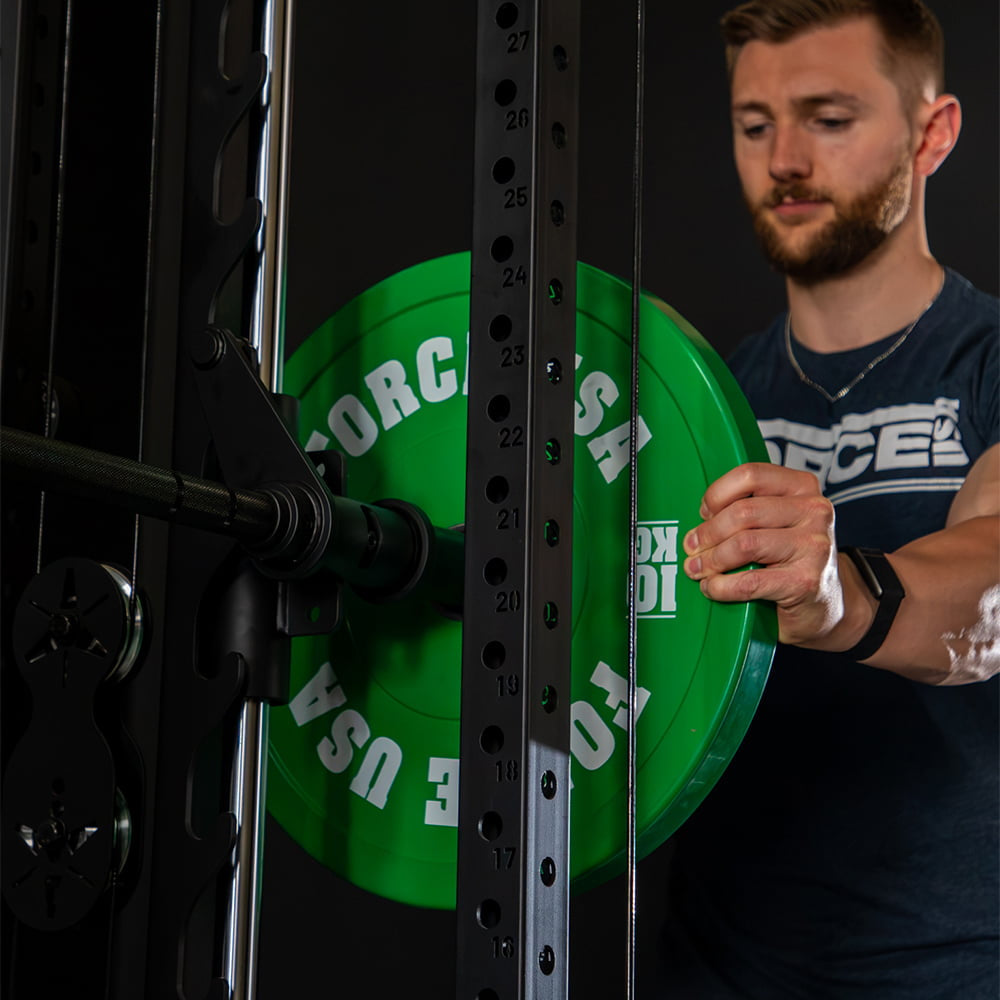

    Built like an absolute tank, the structural frame relies on square 11-gauge steel uprights featuring a professional 16 mm (5/8") hole pattern and 51 mm (2") laser-cut spacing on all four sides. This open-ecosystem, six-post structure allows you to customise your attachments end-to-end. Even better, it utilises a flush base frame that self-adjusts to slightly uneven flooring surfaces for absolute, rock-solid stability during intense workouts. The smart design maximises your interior training environment by offering 112 cm (44") of working space inside a highly compact 122 cm (48") exterior frame width.

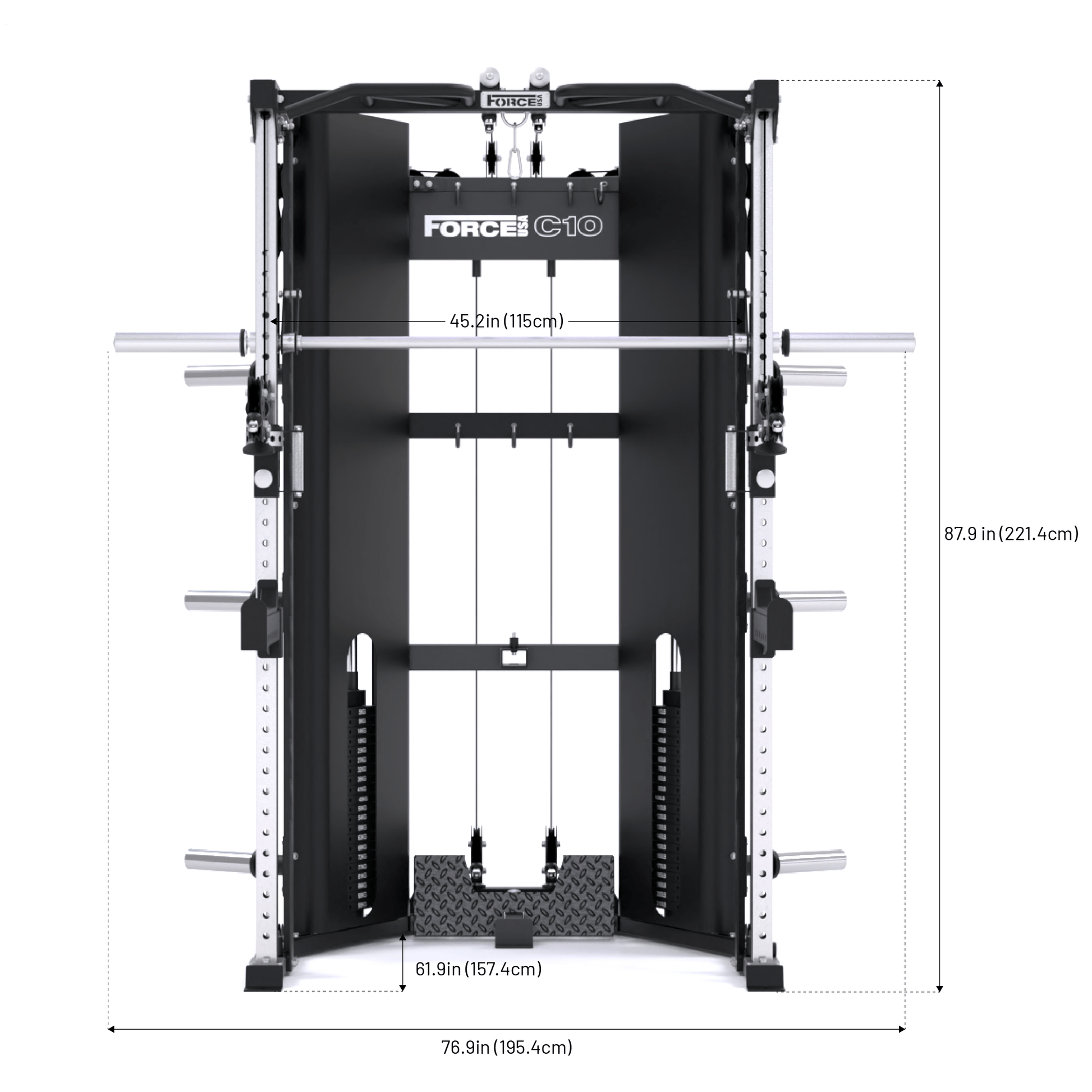

  • Exterior Dimensions With Smith Machine: 195.5 cm W x 142 cm D x 222 cm H (77" W x 56" D x 87.5" H)
  • Exterior Dimensions Without Smith Machine: 122 cm W x 142 cm D x 222 cm H (48" W x 56" D x 87.5" H)
  • Interior Dimensions: 112 cm W x 122 cm D x 211 cm H (44" W x 48" D x 83" H)
  • Uprights: Square 11-gauge steel with 16 mm (5/8") hole pattern and 51 mm (2") laser-cut spacing on all sides
  • Frame Structure: Six-post structure with flush, self-adjusting base frame
  • Pulley Connections: Six pulley connections consisting of dual Freestyle Pulley Arms plus high and low center cable stations
  • Bottom Center Cables Ratio: 1:1 ratio or connected to double resistance
  • Top Center Cables Ratio: 2:1 ratio
  • Freestyle Pulley Arms Ratio: 2:1 ratio with Lock Mode and Flow Mode (180 degrees of freedom)
  • Maximum Cable Resistance: Up to 227 kg (500 lbs), center-connected
  • Dual Weight Stacks: 91 kg (200 lbs) per side, upgradable to 113 kg (250 lbs) per side
  • Maximum Stack Resistance: 227 kg (500 lbs) resistance with both 113 kg (250 lbs) stacks connected at 1:1
  • Micro Adjustment Plate: Built-in 2.3 kg (5 lbs) plate
  • Smith Machine Bar Weight: 16 kg (35 lbs) integrated bar weight
  • Smith Machine Knurling: Professional standard knurling with spinning sleeves
  • Smith Machine Architecture: 5-gauge steel Single Track architecture with guide rod in a single column
  • Smith Machine Range: Industry-leading lowest starting position

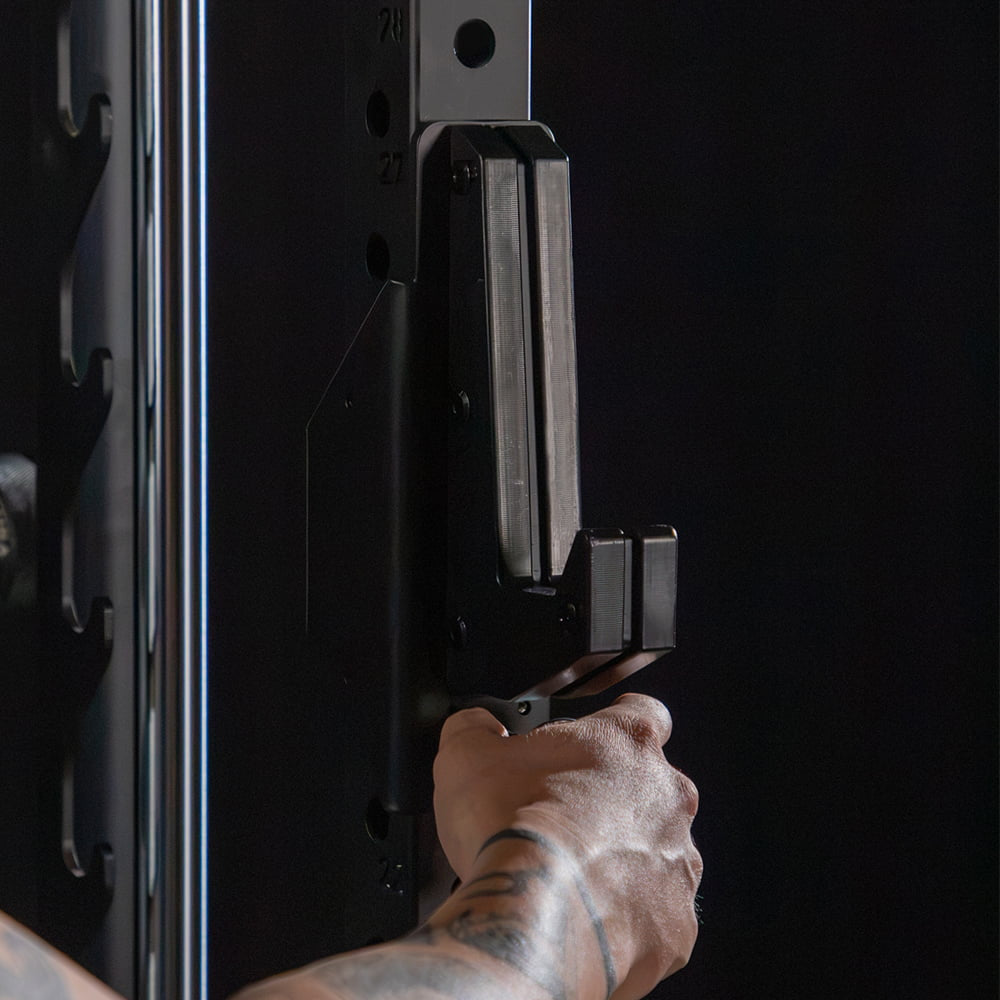

  • J Cups: Pin-Lock J-cups that snap into place, sit flush, and feature UHMW inserts

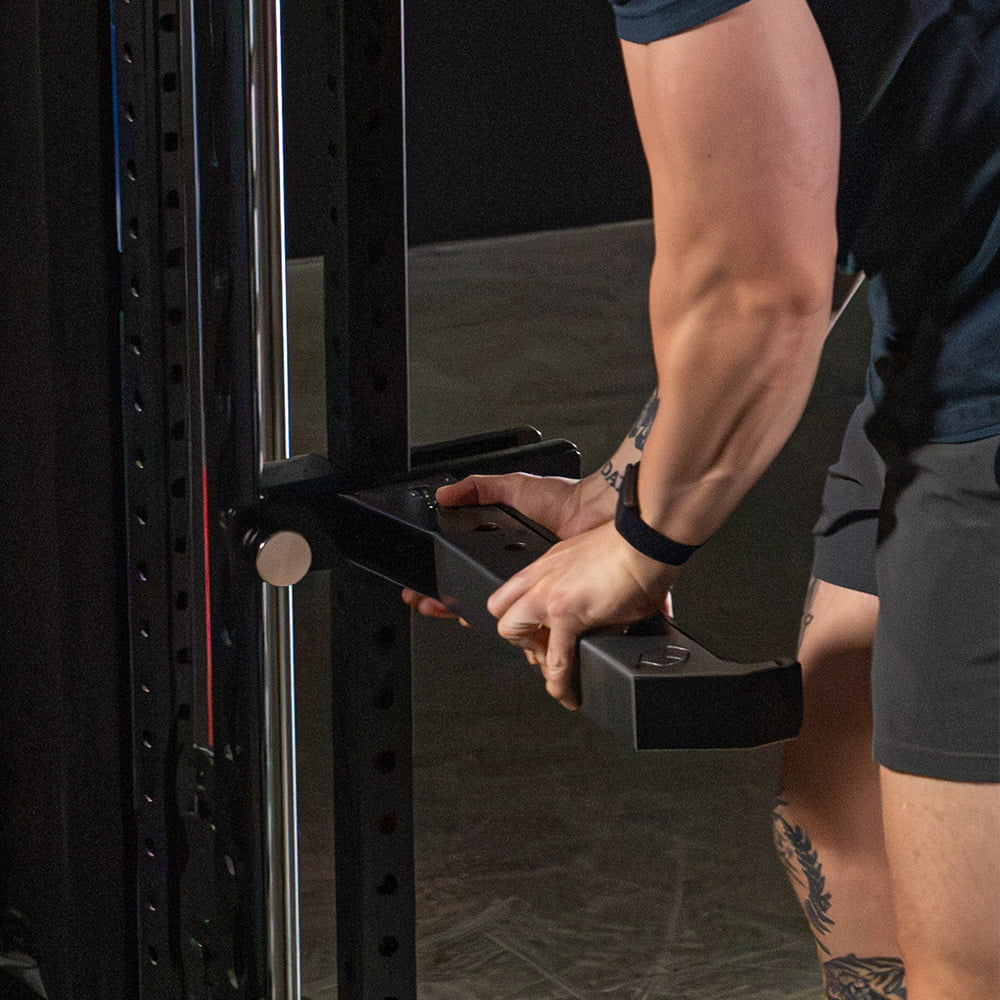

  • Spotter Arms: Locking pin engagement with UHMW inserts
  • Minimum Ceiling Height: 254 cm (8'4" / 100") for full pull-up
  • Maximum User Height: 216 cm (7'1" / 85")
  • Cable Specification: 6.2 mm nylon-coated mil-spec aircraft quality tested to 907 kg (2,000 lbs)
  • Unit Weight Rating: 450 kg (992 lbs)
  • Smith Machine Weight Rating: 350 kg (772 lbs)

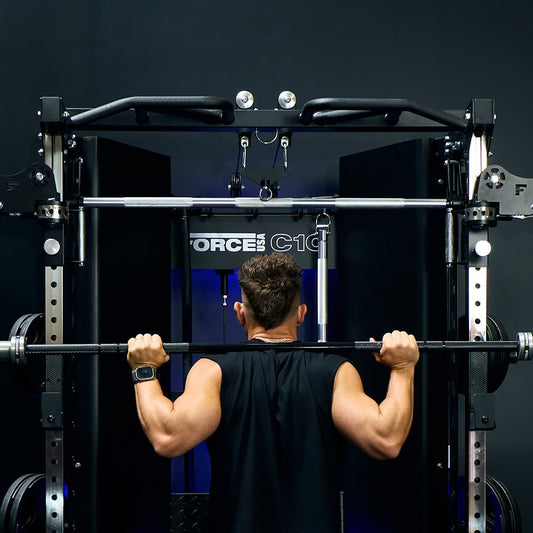

  • Chin Up Weight Rating: 350 kg (772 lbs)

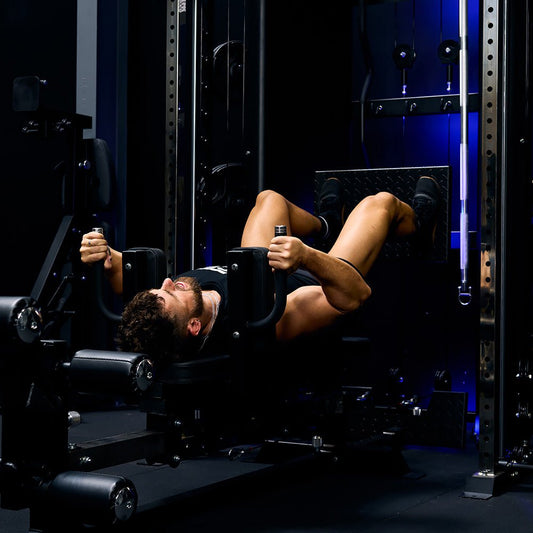

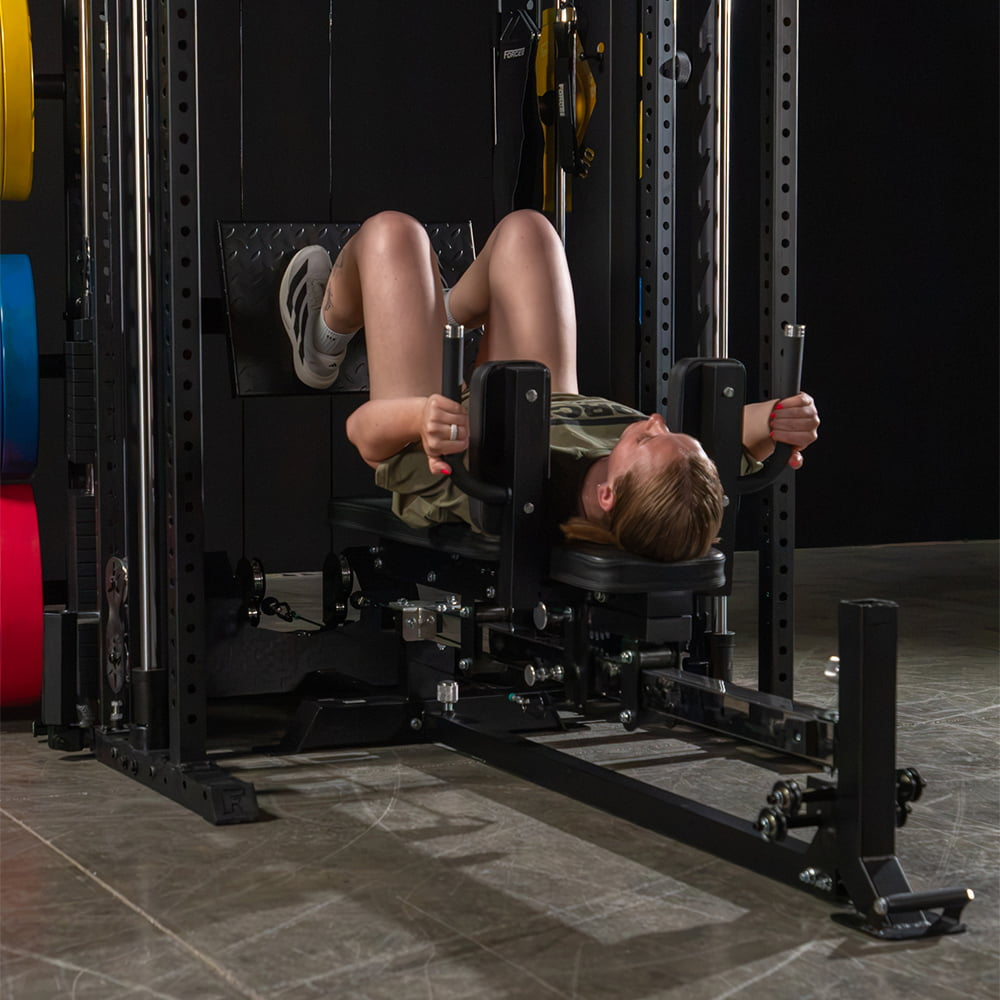

  • Optional Sliding Bench Stations: Five stations consisting of leg press, hack squat, leg curl, leg extension, and preacher curl
  • Optional Sliding Bench Resistance: Up to 227 kg (500 lbs) of resistance through lower center cable system
  • Optional Sliding Bench Storage: Stores upright against the wall
  • Total Shipping Weight: 505 kg (1,114 lbs) across 2 boxes
  • Shipping Box 1 Dimensions: 230 x 98 x 40 cm (91 x 39 x 16 in) weighing 290 kg (640 lbs)
  • Shipping Box 2 Dimensions: 70 x 59 x 20.5 cm (28 x 24 x 9 in) weighing 215 kg (474 lbs)


ADDITIONAL INFO

SKU: F-C10-V2 Brand: Force USA
