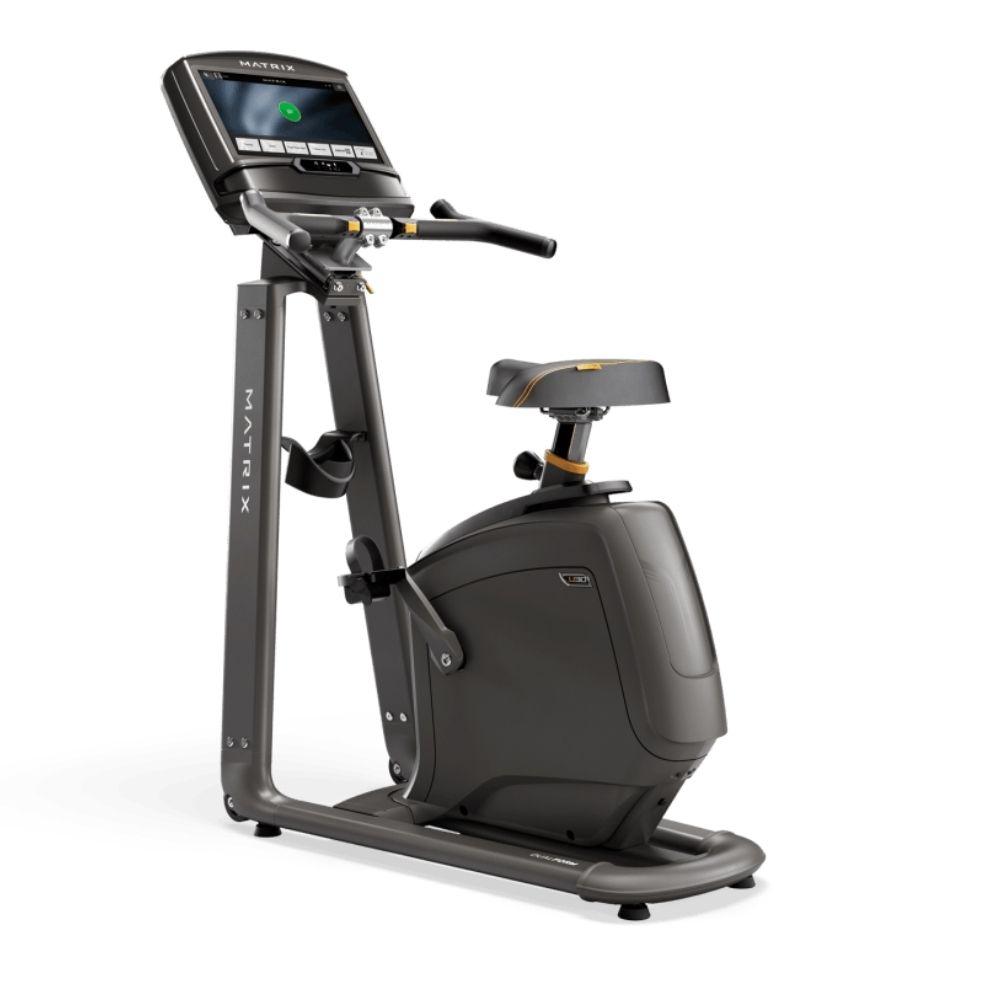

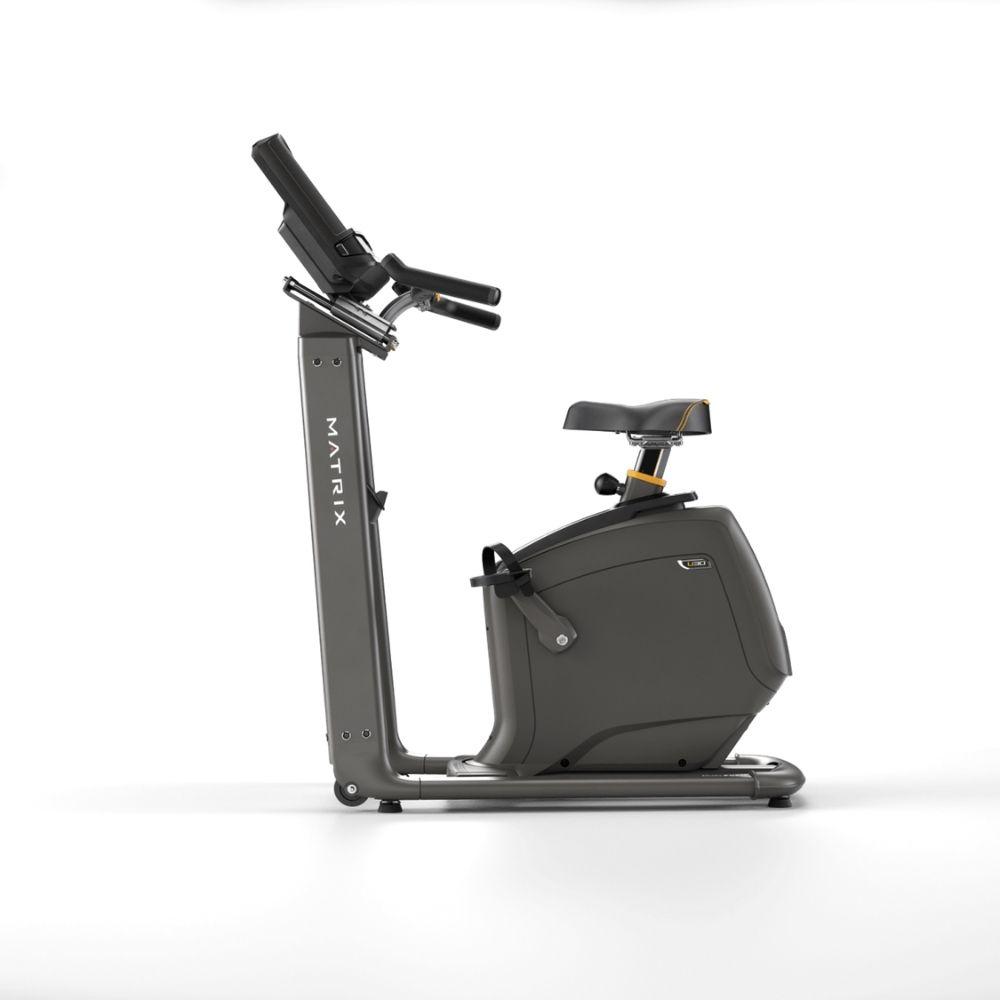

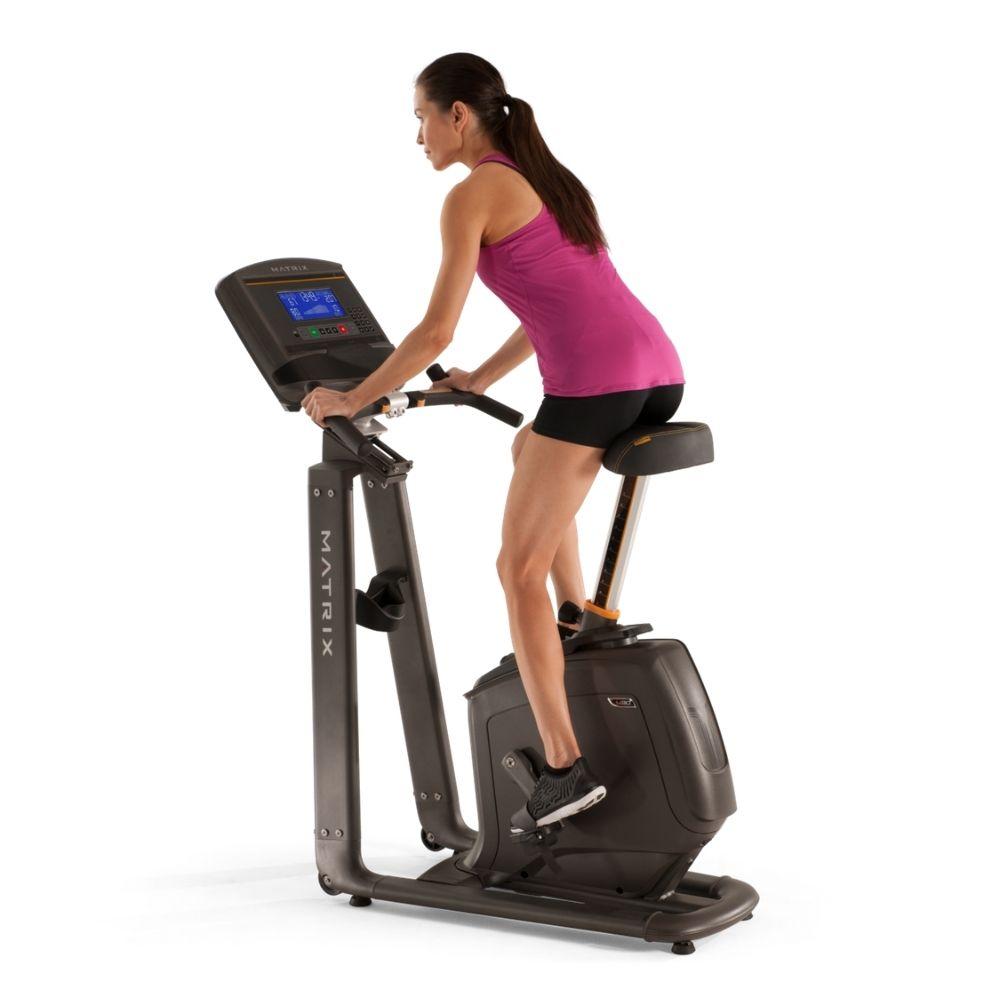

U30 Upright Bike

Experience a better ride by design with the unmatched ergonomics of the industry’s most stable, comfortable and versatile step-through bike. The U30 Upright Bike includes exclusive Dual Form™ Frame and Comfort Arc™ Seat.

Key Features


The larger premium console features a brilliant HD touchscreen display to bring your virtual journeys, movies and videos to life. Includes expanded Bluetooth connectivity to user devices.


The XR console features a clean, bright display that makes it easy for you to check your workout data at a glance, keeping you on track to reach and surpass your goals.

ViewFit™ Integrated Fitness Tracking

The integrated ViewFit™ connectivity system sends workout data to the fitness apps and tools you already use. It also makes it easy to share data in your favorite social networks.

Exclusive Programs

Today’s fitness enthusiast demands more than just the hardware needed for a heart-pumping workout. The exclusive console programs help you track data, connect to social networks, access favourite apps and even go on a journey without ever leaving your home.

Dual Form Frame

The Dual Form Frame significantly improves rider stability over single-post designs and offers a low step-through height for easy access.

Comfort Arc Seat

The Comfort Arc Seat is ergonomically moulded to provide unmatched comfort, support and balance during workouts.

Smart Ergonomics

An optimized Pedal Spacing (a scientific measurement of the distance between the bike's key elements) improves the application of force during the pedal stroke, making every ride more efficient and easier on your joints.

Easily Customizable

You can attach standard outdoor handlebars, saddle and pedals to customize your cycle to your unique style and needs.

Industry-leading Adjustability

The handlebars adjust via an easy-lift lever, and the seat adjusts with a turn-and-pull knob for an ideal fit. Plus, handgrip resistance controls make it easy to adjust the level of challenge without interrupting your workout.


  • Usage: Domestic

XIR Console

  • DISPLAY TYPE - 16” Class HD touchscreen (40 cm)
  • WIFI ENABLED - Software updates, ViewFit Connectivity, entertainment apps
  • BLUETOOTH ENABLED - Stream audio from the phone, tablet, MP3 player; connect wireless headphones; connect wireless heart rate monitor
  • USB PORT - Software updates, charge device (up to 1 amp); stream media via USB flash drives, Windows phones/tablets, Android phones/tablets
  • SPEAKERS - 5 Watt
  • CONSOLE APPS - Simple, Track, Virtual Active, Change Workout, Weather, MyMedia, Web Browser (other apps vary by market)
  • HEART RATE - Wireless heart rate, Polar heart rate strap included
  • CONSOLE EXTRAS - Integrated reading rack, energy saver mode, audio in/out
  • WORKOUT PROGRAMS - 11 Total — Manual, Fat Burn, Rolling Hills, Intervals, Time Goal, Distance Goal, Calorie Goal, Target HR, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies
  • WORKOUT FEEDBACK - Time Elapsed, Time Goal, Time Remaining, Clock, Miles / Kilometers, RPM, Current Speed (MPH / KPH), Pace, Average Pace, Heart Rate, Peak Heart Rate, Calories, Calories / Hour, METS, Resistance, Last Resistance

XR Console

  • Display - 8.5" Extra-wide blue LCD (22 cm)
  • Wifi Enabled - Software updates, ViewFit Connectivity
  • Bluetooth Enabled - No
  • Console Apps - No
  • Passport Ready - Yes
  • Viewfit Connectivity - Yes
  • Heart Rate - Wireless heart rate, Polar compatible
  • Console Extras - Integrated reading rack, energy saver mode
  • Workout Programs - 5 Total — Manual, Intervals, Fat Burn, Target HR, Sprint 8
  • Workout Feedback - Time Elapsed, Time Remaining, Miles/Kilometers, RPM, Pace, Heart Rate, Calories, METS, Speed, Resistance


  • FRAME TYPE - Dual Form step-through upright
  • FLYWHEEL - 23.1 lbs
  • RESISTANCE SYSTEM - ECB magnetic braking system
  • PEDAL SPACING - 7.6 in
  • RESISTANCE RANGE - 20 Levels, electronically adjustable
  • FRAME TYPE - Upright
  • FLYWHEEL WEIGHT - 10.5 kg / 23 lbs.
  • SEAT TYPE - Comfort Arc upright seat, interchangeable
  • SEAT ADJUSTMENT - Up / down via turn-and-pull knob
  • HANDLEBAR TYPE - Multi-grip handlebars with resistance toggles and heart rate grips, adjustable console height, interchangeable
  • PEDAL TYPE - Self-balancing pedals with adjustable straps
  • ACCESSORIES - Water bottle holder

Technical Specifications

  • RESISTANCE - 20 electronic settings
  • USAGE: Domestic
  • STEP-THROUGH - Design
  • ASSEMBLED DIMENSIONS (L X W X H) - 122 x 62 x 143 cm / 48” x 24” x 56”
  • ASSEMBLED WEIGHT - 52 kg / 114 lbs.
  • USER WEIGHT CAPACITY - 159 kg / 350 lbs.
  • USER HEIGHT RANGE - 150 cm - 193 cm / 4'11” - 6'4”
  • ELECTRICAL REQUIREMENTS - 120V AC power, 15A circuit (voltage may vary outside the USA)
  • POWER SUPPLY - 12V / 2A Power adapter

Additional Information

SKU: U-30-02-F-XR Console, U-30-02-F-XIR Console
